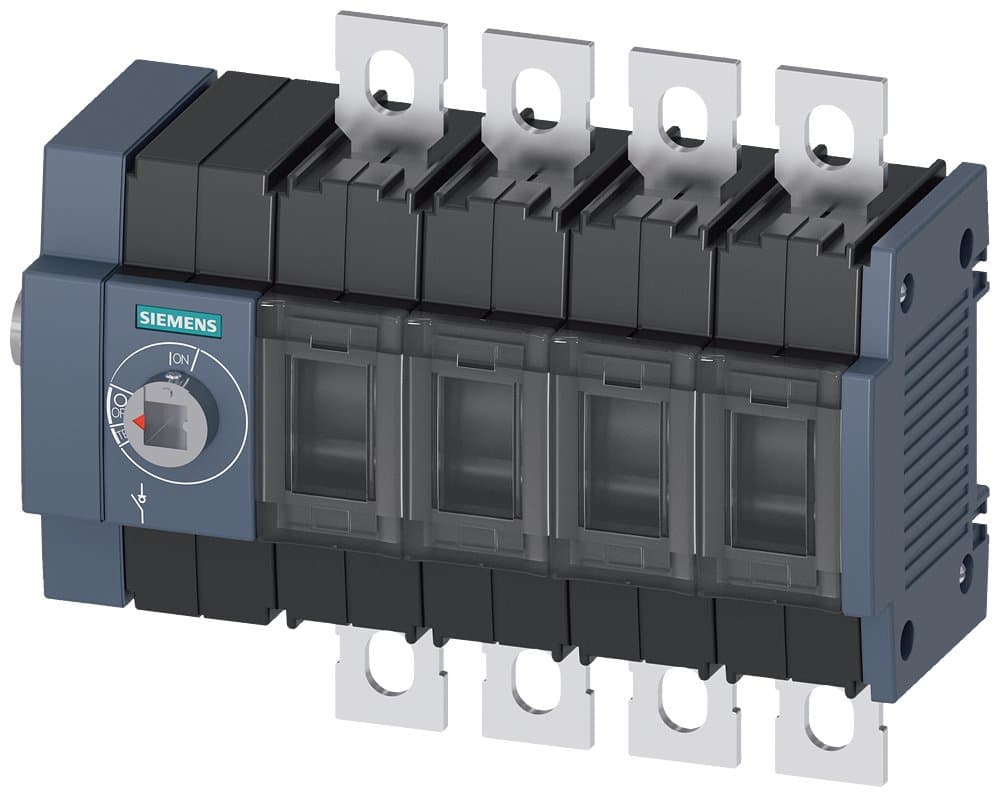

3KD3244-0NE10-0
Product ID:99368
Updated: 2026/4/3
Key Features
- 1Handle up to 125 A for robust and reliable power distribution. 2、Integrate a compact design into space-constrained electrical panels easily. 3、Operate efficiently with the convenient lateral drive mechanism. 4、Support versatile 4-pole configurations for diverse application needs. 5、Ensure user safety with permanent switch-on and switch-off under load.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD Specification 2; Rated Current 125A; 4P; Basic unit without handle, side operation mechanism on the left side of the switch; Surface mounting; Flat connection |
| Mounting Type | Surface Mounting | Terminal Type | Flat Connection |
| Number of Poles | 4P | In(A) | 125 |
| Specification | 3KD Specification 2 [80-125A] | Switch Type | Basic unit without handle, side operation mechanism on the left side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD3244-0NE10-0 |
Specifications may be subject to change without notice
