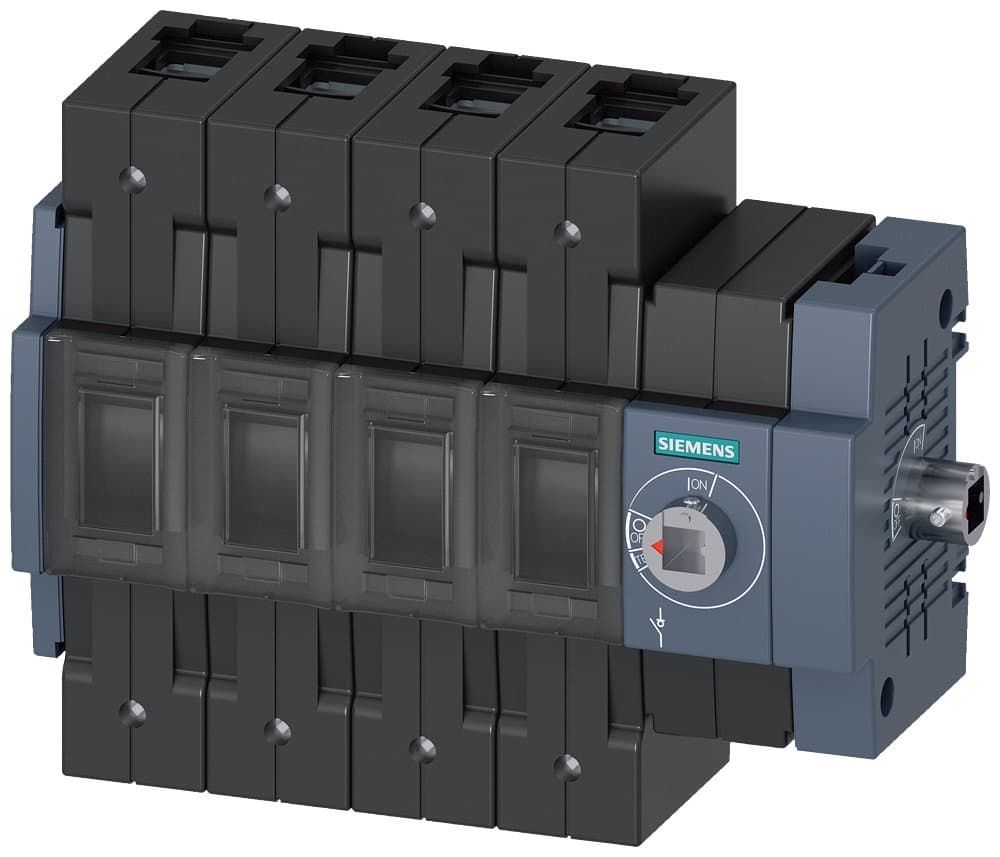

3KD3244-2NE40-0
Product ID:101845
Updated: 2026/4/3
Key Features
- 1Handle 125 A at 690 V AC in a 4-pole configuration. 2、Operate smoothly with a lateral operating mechanism. 3、Mount flexibly on floors, DIN rails, or distribution boards. 4、Enable emergency shutdown via door-coupling rotary mechanism. 5、Enhance functionality with auxiliary switches and connections.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD Specification 2; Rated Current 125A; 4P; Basic unit without handle, side operation mechanism located on the right side of the switch; Surface mount; Box terminal |
| Mounting Type | Surface Mount | Terminal Type | Box Terminal |
| Number of Poles | 4P | In(A) | 125 |
| Specification | 3KD Specification 2 [80-125A] | Switch Type | Basic unit without handle, side operation mechanism located on the right side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD3244-2NE40-0 |
Specifications may be subject to change without notice
