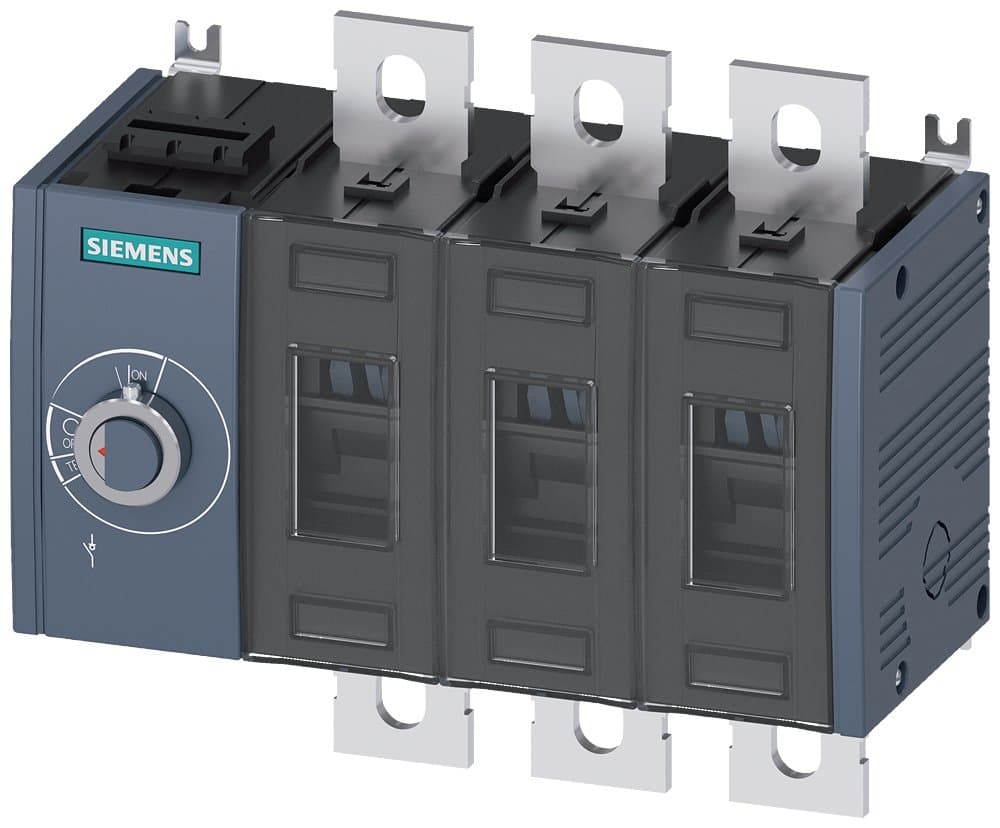

3KD3634-0PE10-0
Product ID:104820
Updated: 2026/7/2
Key Features
- 1Handle high currents up to 200A reliably.
- 2Ensure safe operation with robust IP00/IP20 protection.
- 3Access easily via the lateral operating mechanism.
- 4Apply as a main switch, disconnector, or EMERGENCY OFF device.
- 5Achieve durability with 15,000 mechanical cycles.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD_Specification 3; Rated Current 200A; 3P; Basic unit without handle, side operation mechanism located on the left side of the switch; Surface Mount; Flat Connection |
| Mounting Type | Surface Mount | Terminal Type | Flat Connection |
| Number of Poles | 3P | In(A) | 200 |
| Specification | 3KD_Specification 3 [200-500A] | Switch Type | Basic unit without handle, side operation mechanism located on the left side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model | 3KD3634-0PE10-0 |
Specifications may be subject to change without notice
