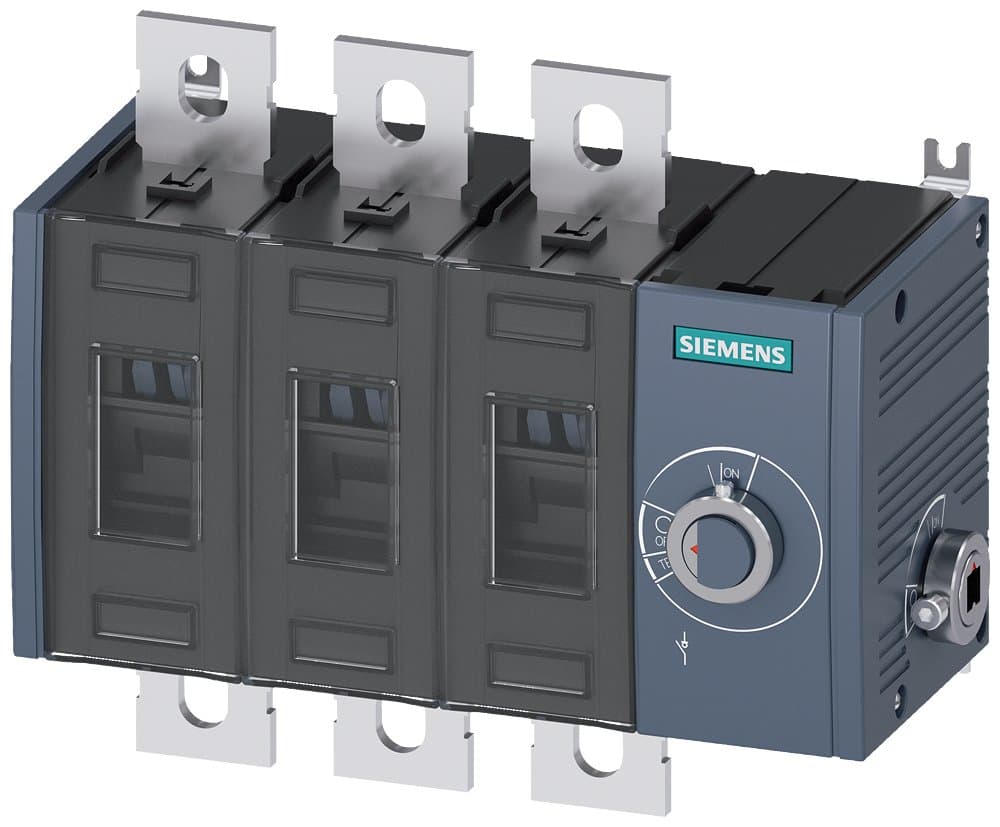

3KD3634-0PE40-0
Product ID:103875
Updated: 2026/7/2
Key Features
- 1Handle up to 200A of continuous current reliably.
- 2Install easily with surface mount design (164x198.5x95mm).
- 3Endure 10,000 mechanical and 15,000 electrical cycles.
- 4Meet IP00 and IP20 protection for varied environments.
- 5Serve as main, disconnect, or maintenance switch.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD Specification 3; Rated current 200A, 3P, basic unit without handle, side operation mechanism on the right side of the switch, surface mounting, flat connection |
| Mounting Type | Surface Mounting | Terminal Type | Flat Connection |
| Number of Poles | 3P | In(A) | 200 |
| Specification | 3KD Specification 3 [200-500A] | Switch Type | Basic unit without handle, side operation mechanism on the right side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model | 3KD3634-0PE40-0 |
Specifications may be subject to change without notice
