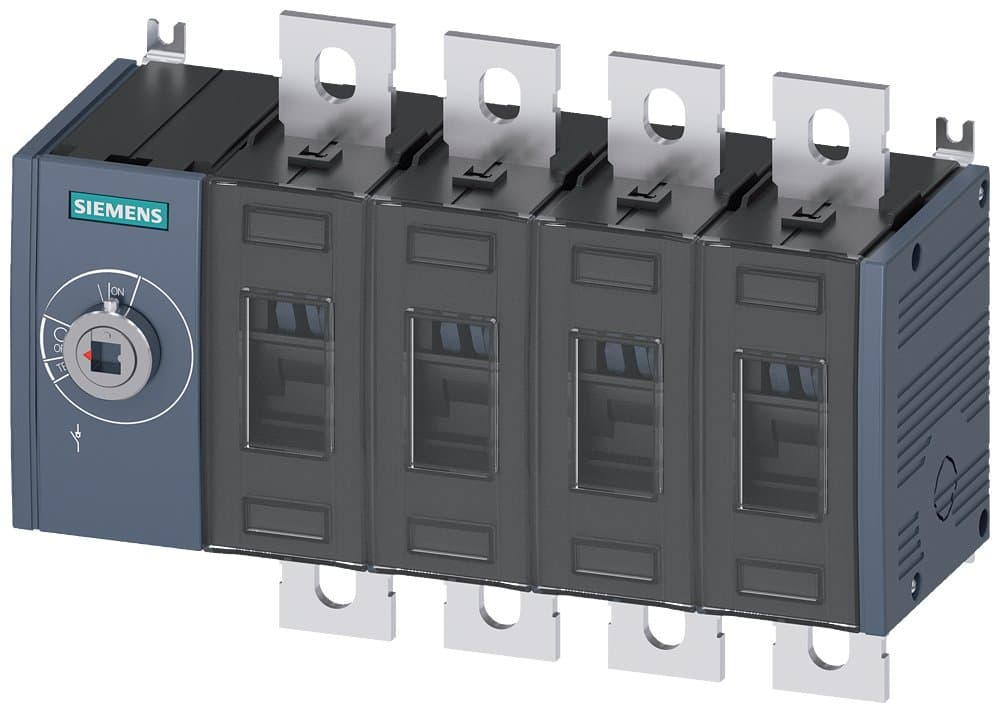

3KD3640-0PE10-0
Product ID:129137
Updated: 2026/7/7
Key Features
- 1Handle up to 200A high current capacity reliably.
- 2Operate easily with the front-mounted drive mechanism.
- 3Control circuits comprehensively using the 4-pole design.
- 4Ensure safety with 1000V insulation voltage protection.
- 5Resist surges up to 12kV for enhanced system reliability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD_Specification 3; Rated Current 200A, 4P, Basic Unit, No Handle, Front Operation Mechanism on the Left Side of the Switch, Surface Mount, Flat Connection, |
| Mounting Type | Surface Mount | Terminal Type | Flat Connection |
| Number of Poles | 4P | In(A) | 200 |
| Specification | 3KD_Specification 3 [200-500A] | Switch Type | Basic Unit, No Handle, Front Operation Mechanism on the Left Side of the Switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model | 3KD3640-0PE10-0 |
Specifications may be subject to change without notice
