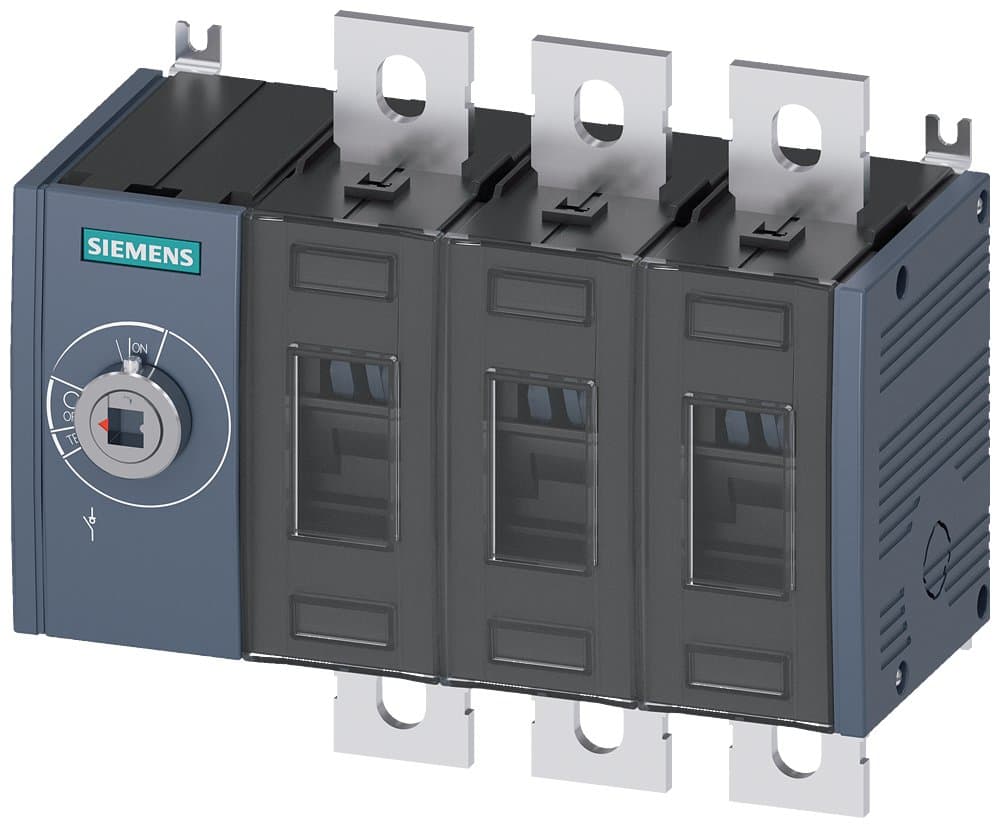

3KD3830-0PE10-0
Product ID:176955
Updated: 2026/4/5
Key Features
- 1Deliver reliable 250A circuit isolation for industrial safety. 2、Install compact Size 3, 3-pole design in tight spaces. 3、Operate easily with the left-front drive mechanism. 4、Connect securely using the flat blade terminal interface. 5、Rely on a 24-month warranty for long-term peace of mind.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD_Specification 3; Rated current 250A, 3P, basic unit without handle, front operation mechanism on the left side of the switch, surface mount, flat connection, |
| Mounting Type | Surface Mount | Terminal Type | Flat Connection |
| Number of Poles | 3P | In(A) | 250 |
| Specification | 3KD_Specification 3 [200-500A] | Switch Type | Basic unit without handle, front operation mechanism on the left side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD3830-0PE10-0 |
Specifications may be subject to change without notice
