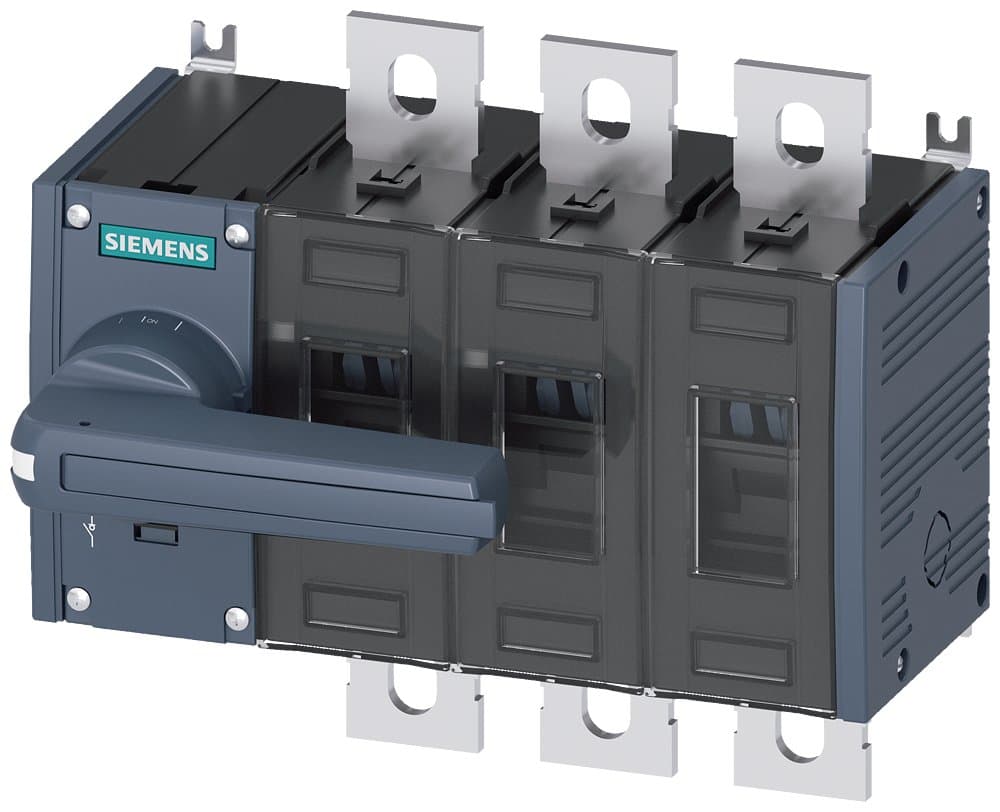

3KD3832-0PE10-0
Product ID:111135
Updated: 2026/7/2
Key Features
- 1Handle up to 250A for demanding electrical systems.
- 2Ensure operator safety with reliable load switching.
- 3Simplify installation with versatile rail or busbar mounting.
- 4Access the left-front drive mechanism conveniently.
- 5Rely on durable gray flat terminals for longevity.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD Specification 3; Rated current 250A, 3P, kit type, front operation, with direct front operation mechanism, gray handle, operating mechanism on the left side of the switch, surface mount, flat connection |
| Mounting Type | Surface Mount | Terminal Type | Flat Connection |
| Number of Poles | 3P | In(A) | 250 |
| Specification | 3KD Specification 3 [200-500A] | Switch Type | Kit type, front operation, with direct front operation mechanism, gray handle, operating mechanism on the left side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD3832-0PE10-0 |
Specifications may be subject to change without notice
