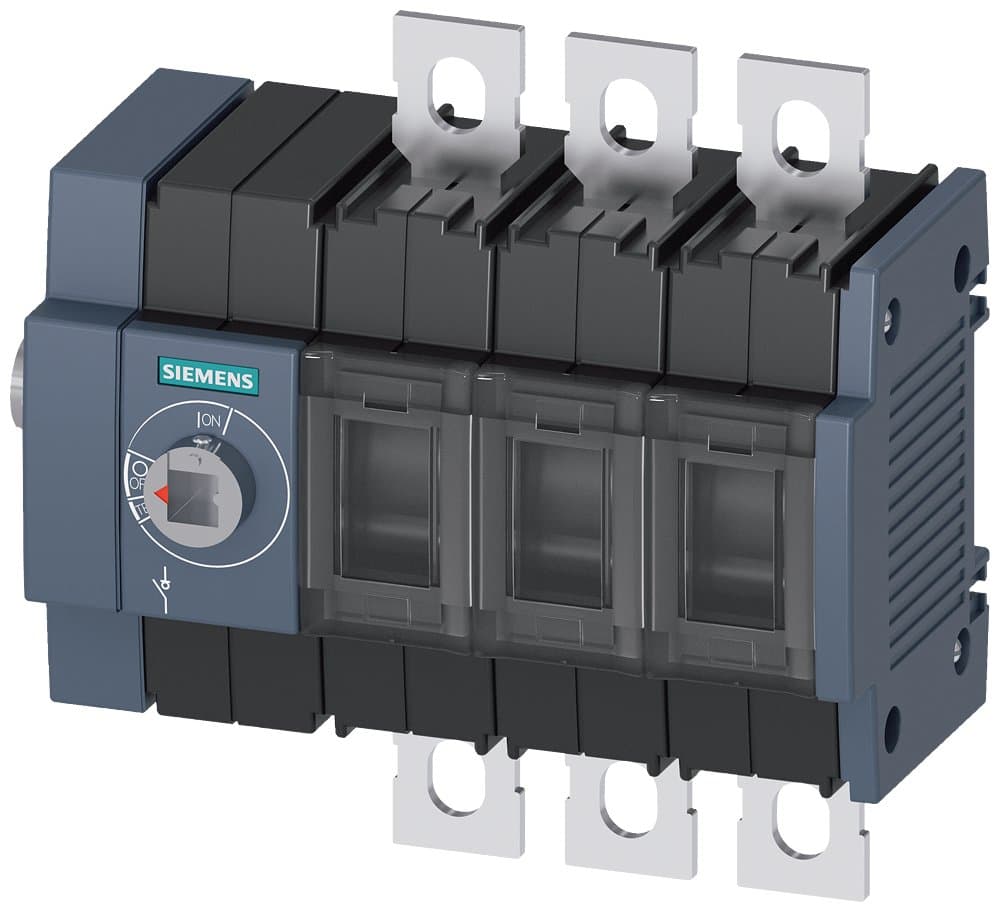

3KD3834-0NE10-0
Product ID:100537
Updated: 2026/7/8
Key Features
- 1Save space with a compact design for tight installations.
- 2Ensure operator safety with enhanced touch protection.
- 3Choose from multiple operating mechanisms for versatile applications.
- 4Handle up to 690V AC and 1200V DC for broad compatibility.
- 5Meet IEC 60947-1 and -3 standards for guaranteed reliability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD Specification 2; Rated Current 250A; 3P; Basic unit without handle, side operation mechanism located on the left side of the switch; Flat connection |
| Mounting Type | Surface Mount | Terminal Type | Flat Connection |
| Number of Poles | 3P | In(A) | 250 |
| Specification | 3KD Specification 2 [160-250A] | Switch Type | Basic unit without handle, side operation mechanism located on the left side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD3834-0NE10-0 |
Specifications may be subject to change without notice
