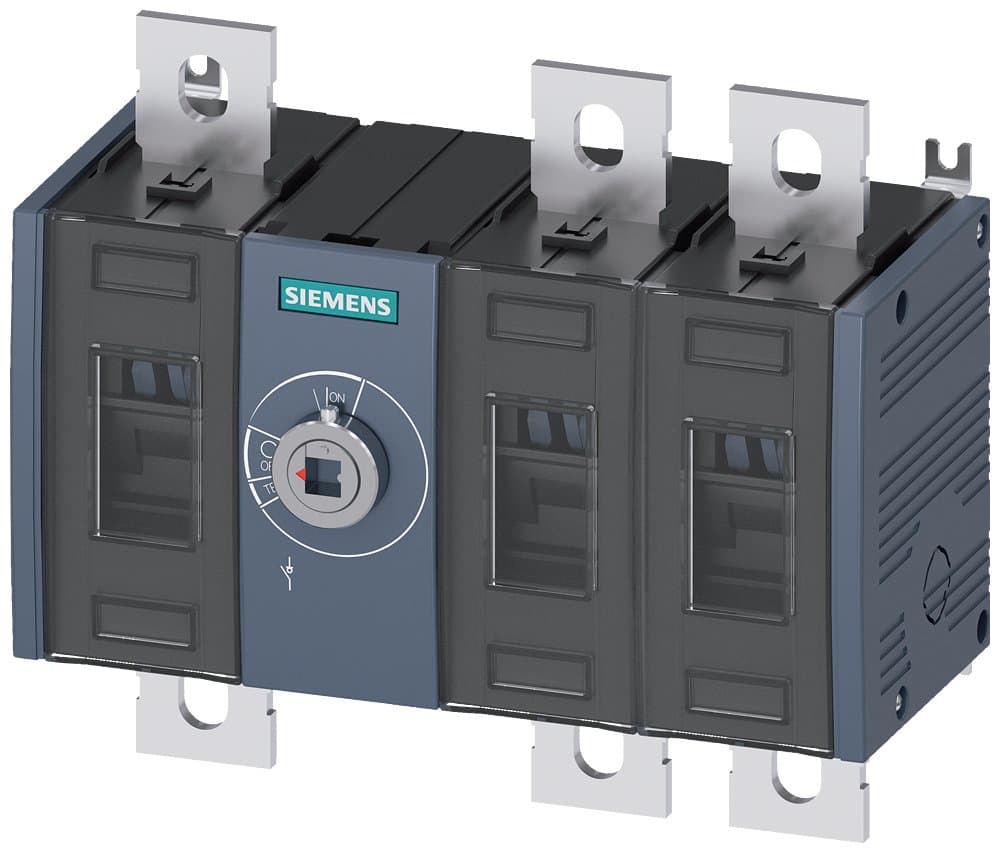

3KD4030-0PE20-0
Product ID:108252
Updated: 2026/4/3
Key Features
- 1Handle high currents up to 315 A reliably. 2、Access the front operating mechanism easily. 3、Install the compact 189x120x95 mm unit in tight spaces. 4、Expect a robust 15,000-cycle mechanical service life. 5、Meet environmental standards with RoHS compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD_Specification 3; Rated current 315A, 3P, basic unit without handle, front operation mechanism located at the center of the switch, surface mount, flat connection, |
| Mounting Type | Surface Mount | Terminal Type | Flat Connection |
| Number of Poles | 3P | In(A) | 315 |
| Specification | 3KD_Specification 3 [200-500A] | Switch Type | Basic unit without handle, front operation mechanism located at the center of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD4030-0PE20-0 |
Specifications may be subject to change without notice
