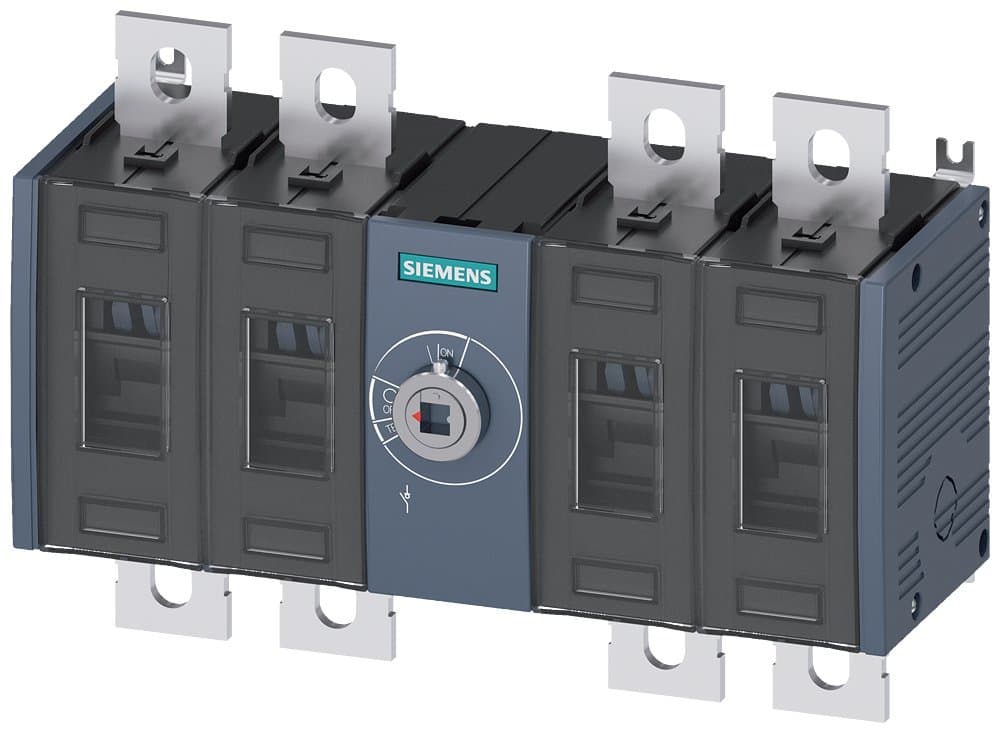

3KD4040-0PE20-0
Product ID:211023
Updated: 2026/7/2
Key Features
- 1Handle high currents up to 315A reliably.
- 2Utilize a compact design for tight spaces.
- 3Configure with 4 poles for enhanced safety.
- 4Operate easily via front-mounted mechanism.
- 5Integrate seamlessly with Sentron series.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD_Specification 3; Rated current 315A, 4P, basic unit without handle, front operation mechanism located at the center of the switch, surface mount, flat connector, |
| Mounting Type | Surface mount | Terminal Type | Flat connector |
| Number of Poles | 4P | In(A) | 315 |
| Specification | 3KD_Specification 3 [200-500A] | Switch Type | Basic unit without handle, front operation mechanism located at the center of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD4040-0PE20-0 |
Specifications may be subject to change without notice
