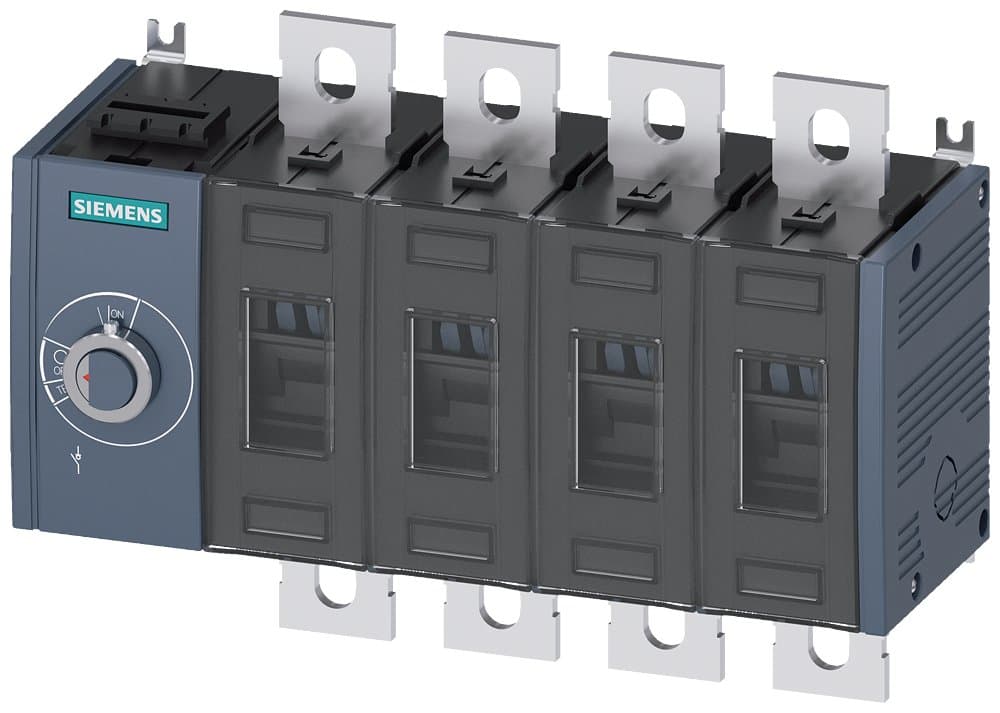

3KD4244-0PE10-0
Product ID:114504
Updated: 2026/4/3
Key Features
- 1Handle up to 400A and 690V for demanding high-voltage applications. 2、Utilize a compact Size 3 footprint to save panel space. 3、Ensure reliable disconnection with the lateral operating mechanism. 4、Meet RoHS and WEEE standards for global compliance. 5、Install the robust basic unit with flat terminals for durable performance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD_Specification 3; Rated Current 400A; 4P; Basic unit without handle, side operation mechanism on the left side of the switch; Surface mounting; Flat connection |
| Mounting Type | Surface Mounting | Terminal Type | Flat Connection |
| Number of Poles | 4P | In(A) | 400 |
| Specification | 3KD_Specification 3 [200-500A] | Switch Type | Basic unit without handle, side operation mechanism on the left side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD4244-0PE10-0 |
Specifications may be subject to change without notice
