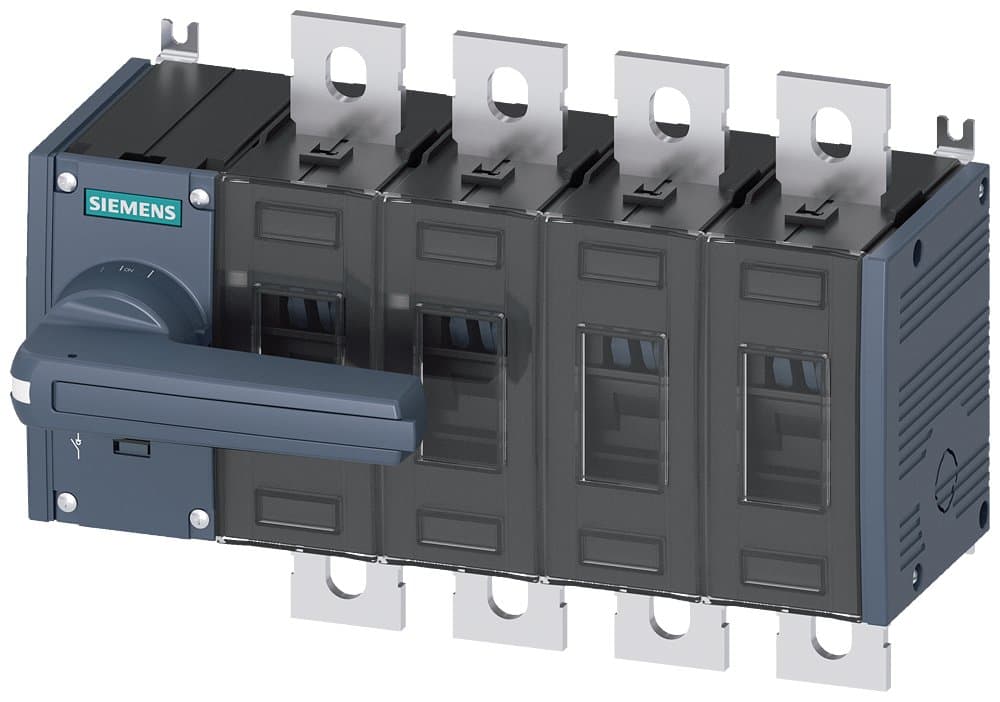

3KD4442-0PE10-0
Product ID:102509
Updated: 2026/7/2
Key Features
- 1Permanently switch under load to protect users from electric shock.
- 2Meet diverse needs with a rated current range from 16 to 2000 A.
- 3Ensure robust performance with a high 6 kA short-circuit current rating.
- 4Install versatilely with floor, rail, or front mounting options.
- 5Guarantee safety and reliability with IEC 60947-3 and UL compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD_Specification 3; Rated Current 500A; 4P; Kit type, front operation, with direct front operation mechanism, gray handle, operation mechanism on the left side of the switch; Flat Connection |
| Mounting Type | Surface Mount | Terminal Type | Flat Connection |
| Number of Poles | 4P | In(A) | 500 |
| Specification | 3KD_Specification 3 [200-500A] | Switch Type | Kit type, front operation, with direct front operation mechanism, gray handle, operation mechanism on the left side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD4442-0PE10-0 |
Specifications may be subject to change without notice
