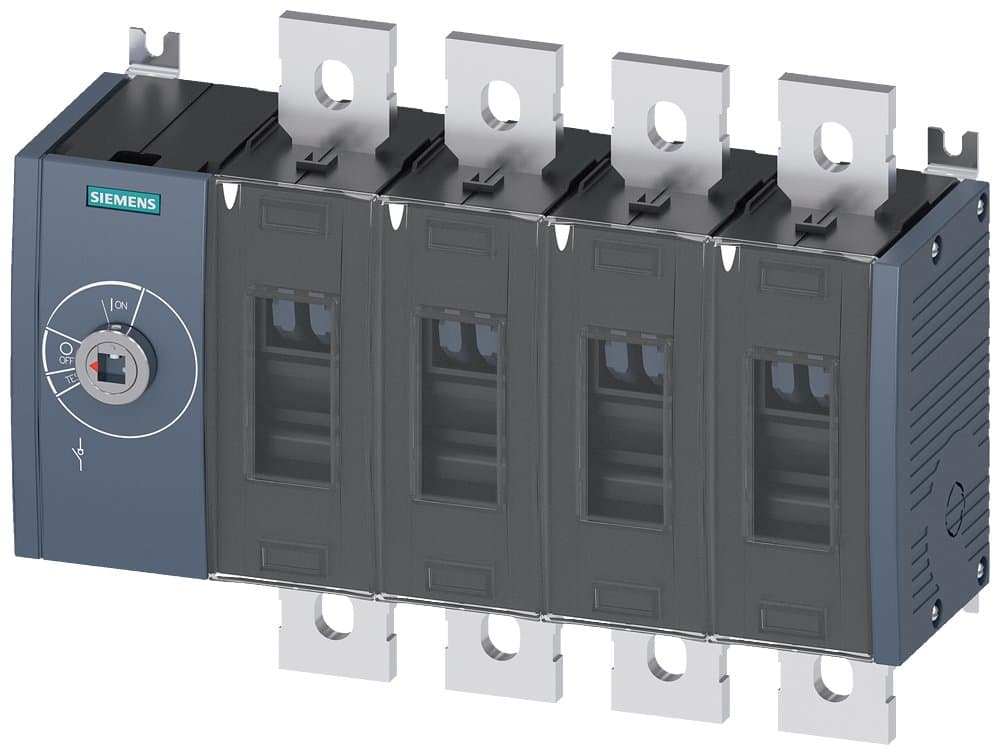

3KD4640-0QE10-0
Product ID:112129
Updated: 2026/7/2
Key Features
- 1Ensure immediate emergency shutdown for critical safety.
- 2Maintain performance with built-in tolerance compensation.
- 3Install efficiently using the compact 100x100mm design.
- 4Receive a complete unit including handle and mechanism.
- 5Withstand rigorous demands with high-reliability construction.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD_Specification 4; Rated current 630A, 4P, basic unit without handle, front operation mechanism on the left side of the switch, surface mount, flat connection, |
| Mounting Type | Surface Mount | Terminal Type | Flat Connection |
| Number of Poles | 4P | In(A) | 630 |
| Specification | 3KD_Specification 4 [500-1000A] | Switch Type | Basic unit without handle, front operation mechanism on the left side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD4640-0QE10-0 |
Specifications may be subject to change without notice
