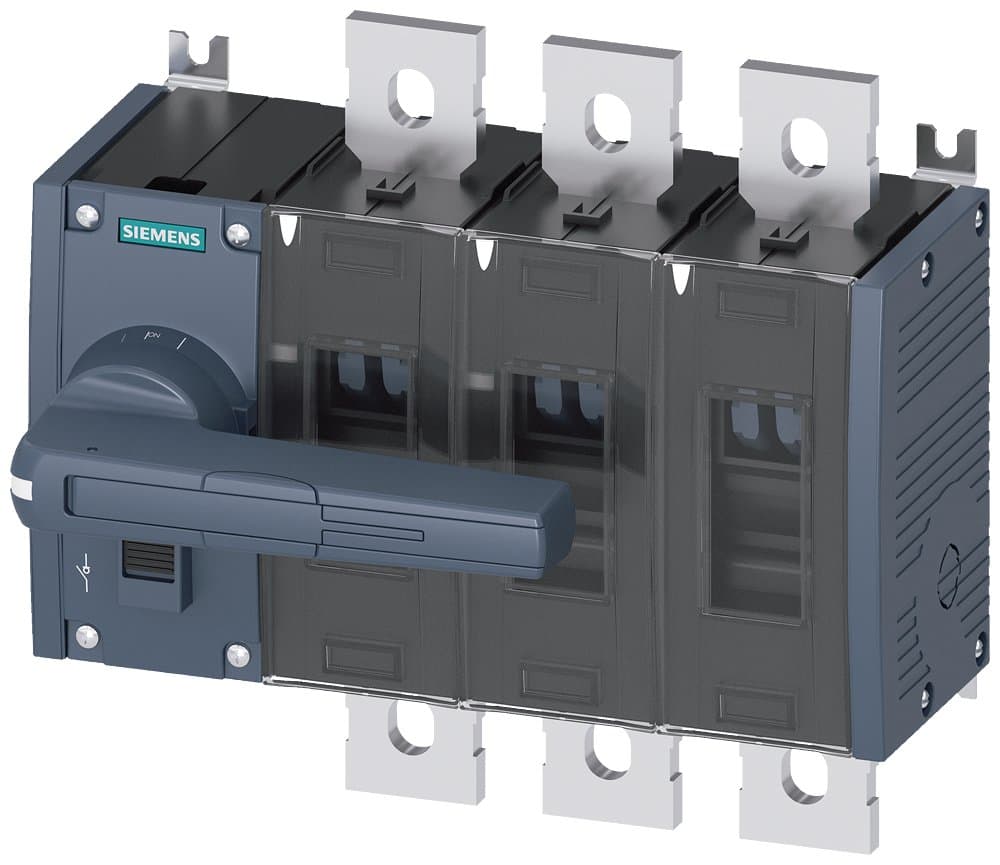

3KD4832-0QE10-0
Product ID:220121
Updated: 2026/6/21
Key Features
- 1Handle demanding 800A high-current switching reliably.
- 2Ensure safe isolation in wind power plants with 3-pole design.
- 3Operate easily using the front-mounted drive mechanism.
- 4Reduce maintenance costs with robust construction and long life.
- 5Integrate seamlessly into existing industrial control panels.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD Specification 4; Rated current 800A, 3P, kit type, front operation, with direct front operation mechanism, gray handle, operating mechanism on the left side of the switch, surface mount, flat connection, |
| Mounting Type | Surface Mount | Terminal Type | Flat Connection |
| Number of Poles | 3P | In(A) | 800 |
| Specification | 3KD Specification 4 [500-1000A] | Switch Type | Kit type, front operation, with direct front operation mechanism, gray handle, operating mechanism on the left side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD4832-0QE10-0 |
Specifications may be subject to change without notice
