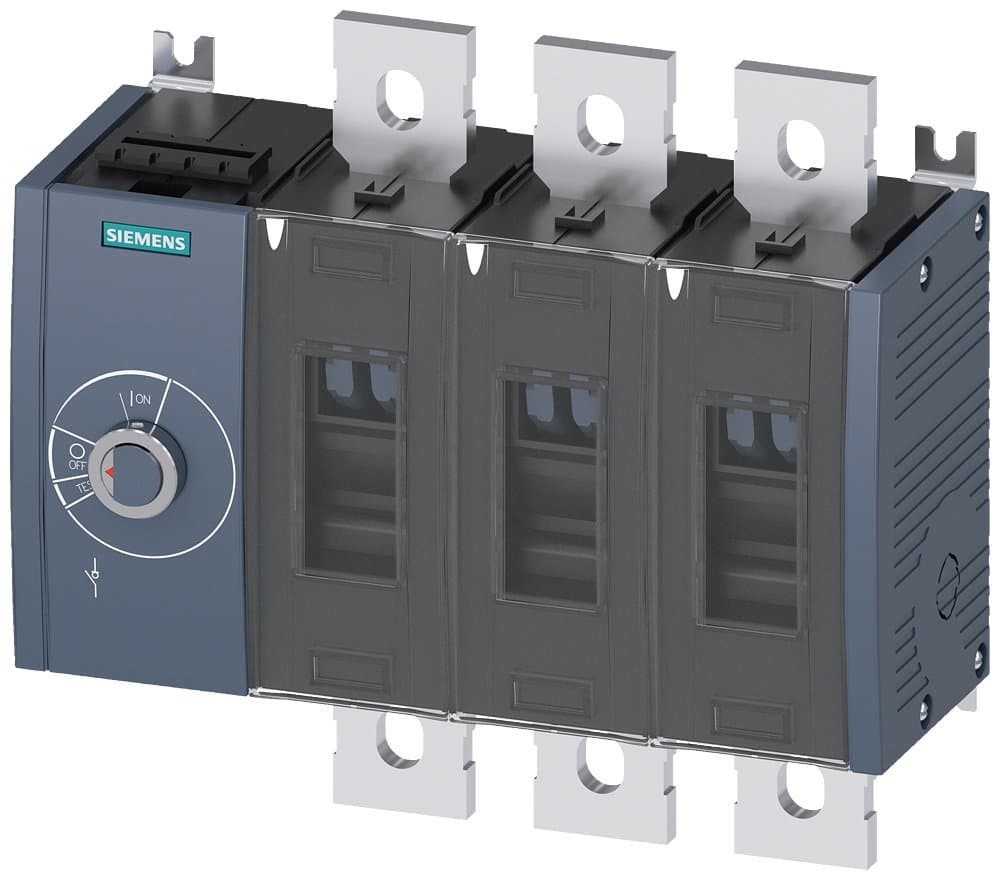

3KD4834-0QE10-0
Product ID:108295
Updated: 2026/7/2
Key Features
- 1Ensure precise control and reliability in electrical installations.
- 2Provide immediate shutdown in critical situations to enhance safety.
- 3Fit seamlessly into various panel configurations measuring 100 x 100 mm.
- 4Withstand heavy use to ensure durability and a long service life.
- 5Integrate straightforwardly into existing systems as a complete unit.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD_Specification 4; Rated Current 800A; 3P; Basic Unit, Without Handle, Side Operation Mechanism Located on the Left Side of the Switch; Surface Mount; Flat Connection |
| Mounting Type | Surface Mount | Terminal Type | Flat Connection |
| Number of Poles | 3P | In(A) | 800 |
| Specification | 3KD_Specification 4 [500-1000A] | Switch Type | Basic Unit, Without Handle, Side Operation Mechanism Located on the Left Side of the Switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD4834-0QE10-0 |
Specifications may be subject to change without notice
