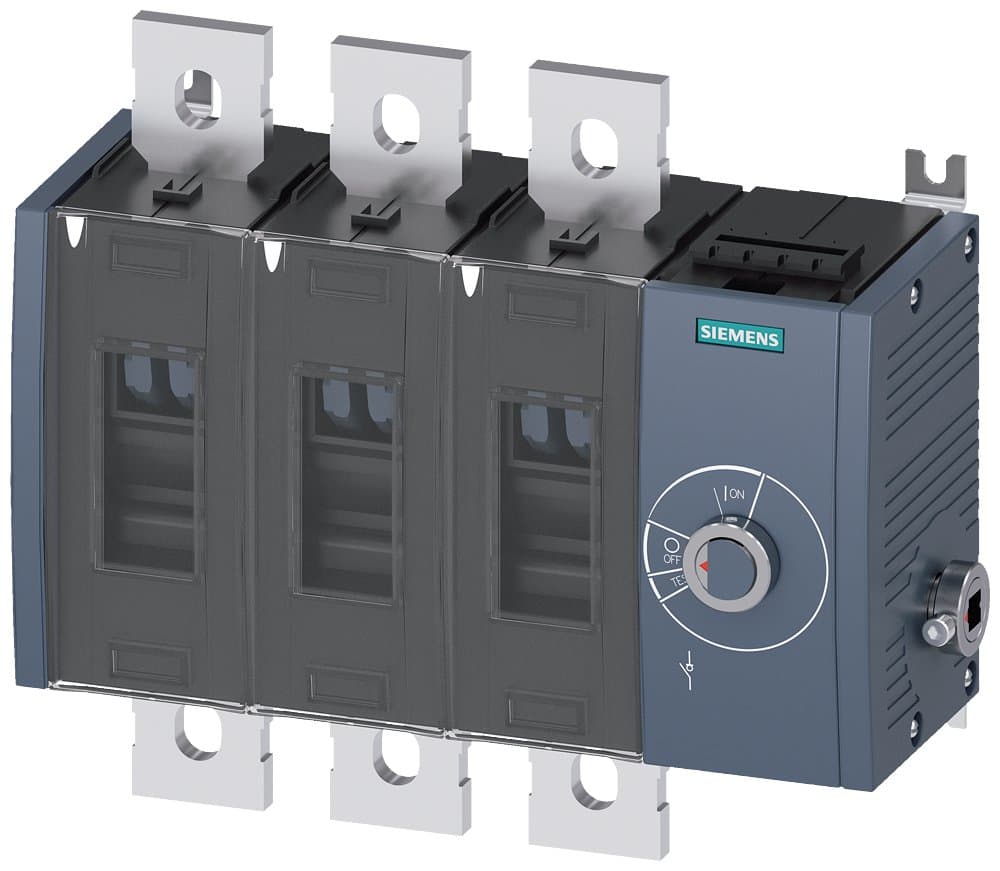

3KD4834-0QE40-0
Product ID:98655
Updated: 2026/7/2
Key Features
- 1Handle high current loads up to 800 A reliably.
- 2Utilize a compact design for space-saving panel installations.
- 3Configure versatile 3-pole electrical distribution systems.
- 4Operate easily with the side-mounted drive mechanism.
- 5Meet stringent UL standards for safety and compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD_Specification 4; Rated current 800A, 3P, basic unit without handle, side operation mechanism on the right side of the switch, surface mount, flat connection, |
| Mounting Type | Surface Mount | Terminal Type | Flat Connection |
| Number of Poles | 3P | In(A) | 800 |
| Specification | 3KD_Specification 4 [500-1000A] | Switch Type | Basic unit without handle, side operation mechanism on the right side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD4834-0QE40-0 |
Specifications may be subject to change without notice
