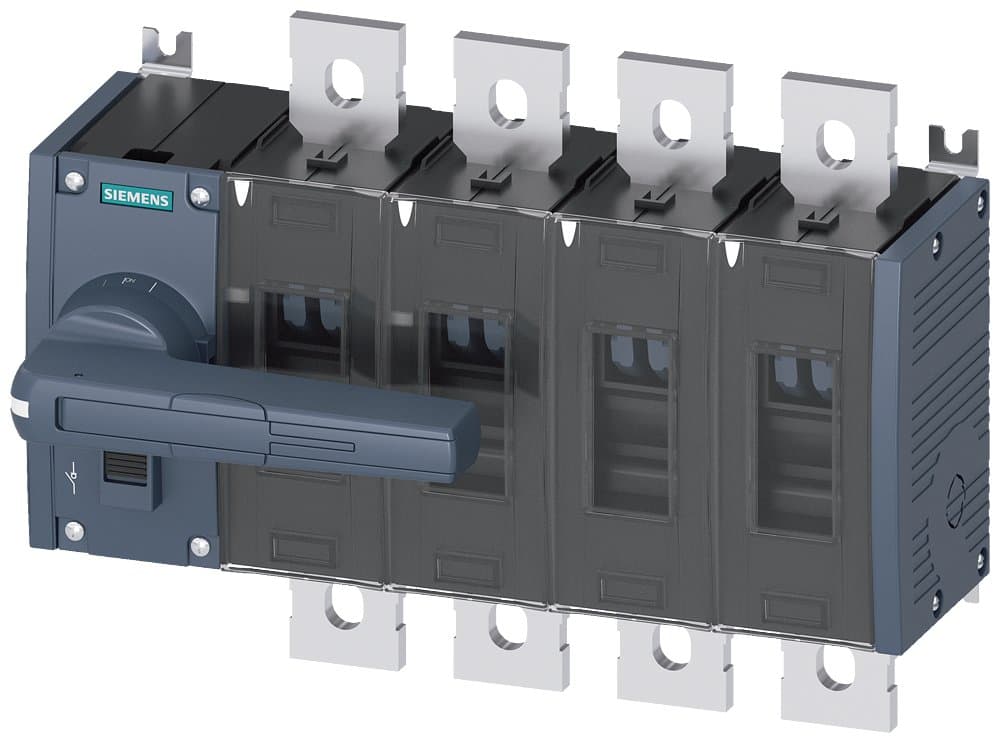

3KD4842-0QE10-0
Product ID:203111
Updated: 2026/7/3
Key Features
- 1Handle heavy-duty loads with a high 800 A current rating.
- 2Configure versatile circuits using the reliable 4-pole design.
- 3Operate safely and easily via the front-mounted drive mechanism.
- 4Install seamlessly as a complete unit with direct operation.
- 5Ensure secure connections with the gray flat terminal design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD Specification 4; Rated current 800A, 4P, kit type, front operation, with direct front operation mechanism, gray handle, operating mechanism on the left side of the switch, surface mount, flat connection, |
| Mounting Type | Surface Mount | Terminal Type | Flat Connection |
| Number of Poles | 4P | In(A) | 800 |
| Specification | 3KD Specification 4 [500-1000A] | Switch Type | Kit type, front operation, with direct front operation mechanism, gray handle, operating mechanism on the left side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD4842-0QE10-0 |
Specifications may be subject to change without notice
