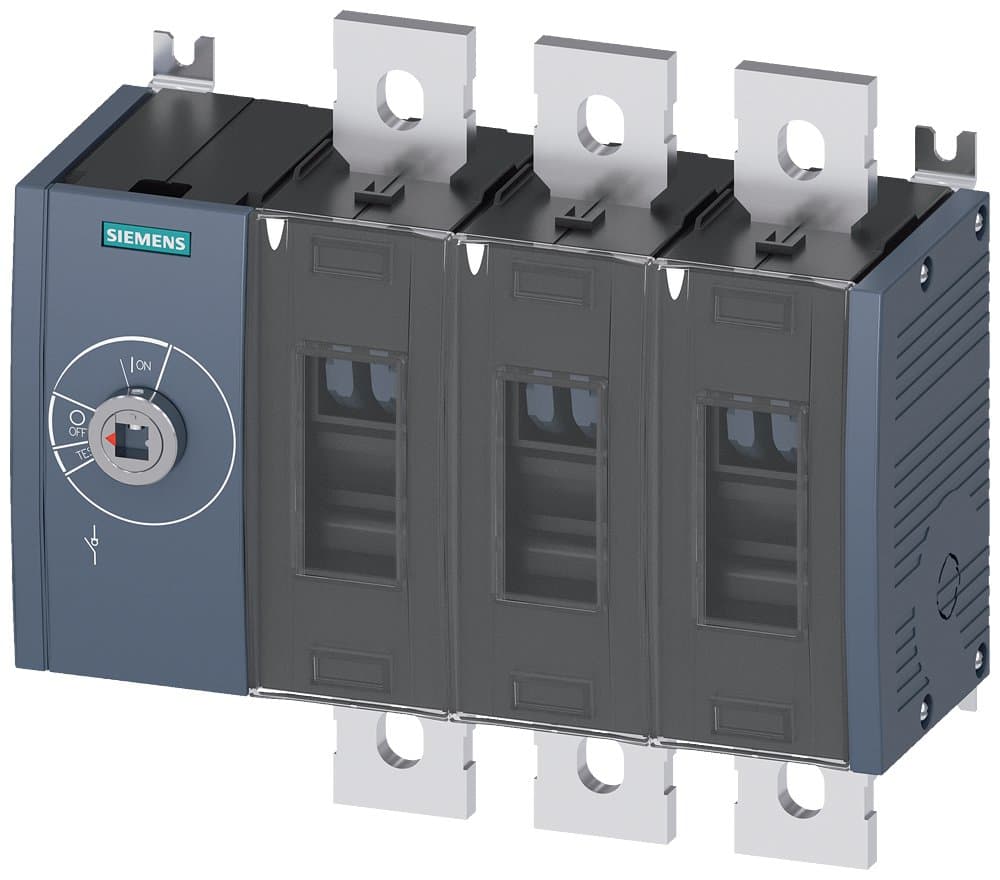

3KD5030-0QE10-0
Product ID:219265
Updated: 2026/6/22
Key Features
- 1Protect users from electric shock with permanent switch-on and switch-off under load.
- 2Install for floor mounting, standard mounting rails, and busbar systems.
- 3Support rated currents from 16 to 2000 A for various applications.
- 4Design with IP65 protection for maximum durability in harsh environments.
- 5Meet IEC 60947-3 and UL 508 standards for reliable performance and safety.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD_Specification 4; Rated Current 1000A; 3P; Basic unit without handle, front operation mechanism on the left side of the switch; Flat connection |
| Mounting Type | Surface Mount | Terminal Type | Flat Connection |
| Number of Poles | 3P | In(A) | 1000 |
| Specification | 3KD_Specification 4 [500-1000A] | Switch Type | Basic unit without handle, front operation mechanism on the left side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD5030-0QE10-0 |
Specifications may be subject to change without notice
