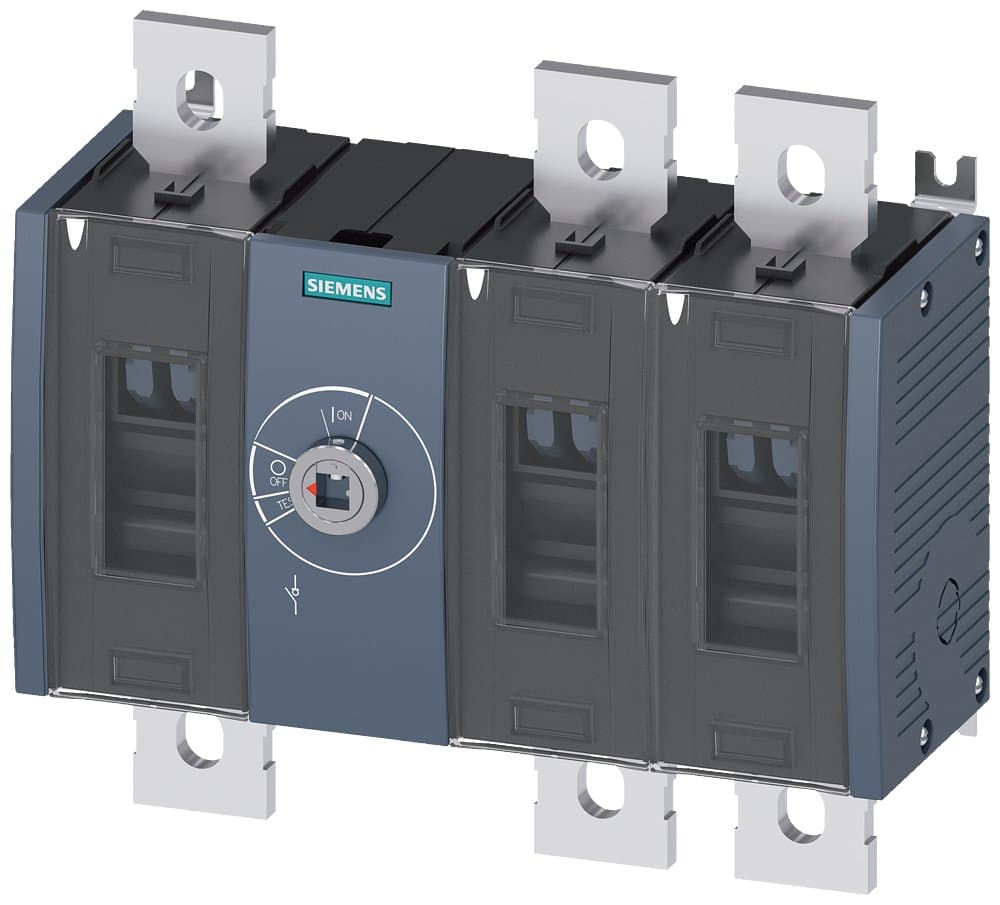

3KD5030-0QE20-0
Product ID:224551
Updated: 2026/7/10
Key Features
- 1Handle robust 1000A applications reliably.
- 2Install efficiently with compact Frame Size 4.
- 3Operate safely via the 3-pole front center drive.
- 4Streamline panel design with the basic no-handle unit.
- 5Ensure secure connections using flat terminals.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD Specification 4; Rated Current 1000A; 3P; Basic unit without handle, front operation mechanism located at the center of the switch; Flat connection |
| Mounting Type | Surface Mount | Terminal Type | Flat Connection |
| Number of Poles | 3P | In(A) | 1000 |
| Specification | 3KD Specification 4 [500-1000A] | Switch Type | Basic unit without handle, front operation mechanism located at the center of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD5030-0QE20-0 |
Specifications may be subject to change without notice
