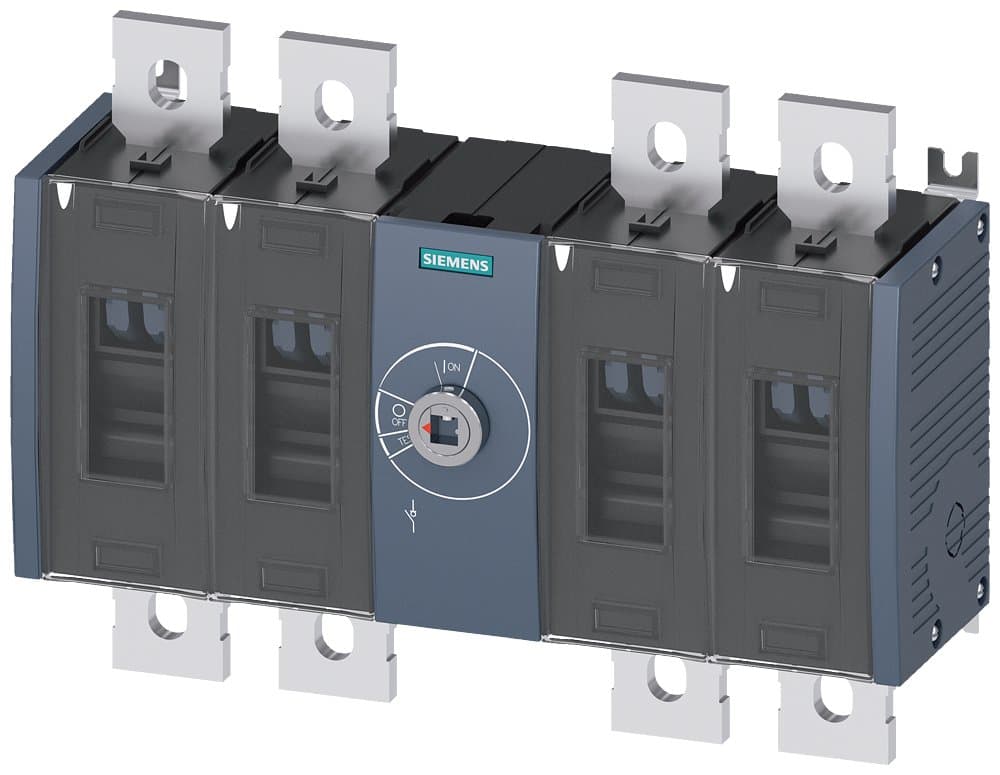

3KD5040-0QE20-0
Product ID:107944
Updated: 2026/7/2
Key Features
- 1Handle high-current loads reliably with a 1000A rating.
- 2Save valuable panel space with a compact Size 4 design.
- 3Operate all four poles conveniently via the front drive mechanism.
- 4Enable emergency shutdowns for enhanced personnel and equipment safety.
- 5Ensure precise alignment and performance with tolerance compensation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD Specification 4; Rated Current 1000A; 4P; Basic unit without handle, front operation mechanism located at the center of the switch; Flat connection |
| Mounting Type | Surface Mount | Terminal Type | Flat Connection |
| Number of Poles | 4P | In(A) | 1000 |
| Specification | 3KD Specification 4 [500-1000A] | Switch Type | Basic unit without handle, front operation mechanism located at the center of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD5040-0QE20-0 |
Specifications may be subject to change without notice
