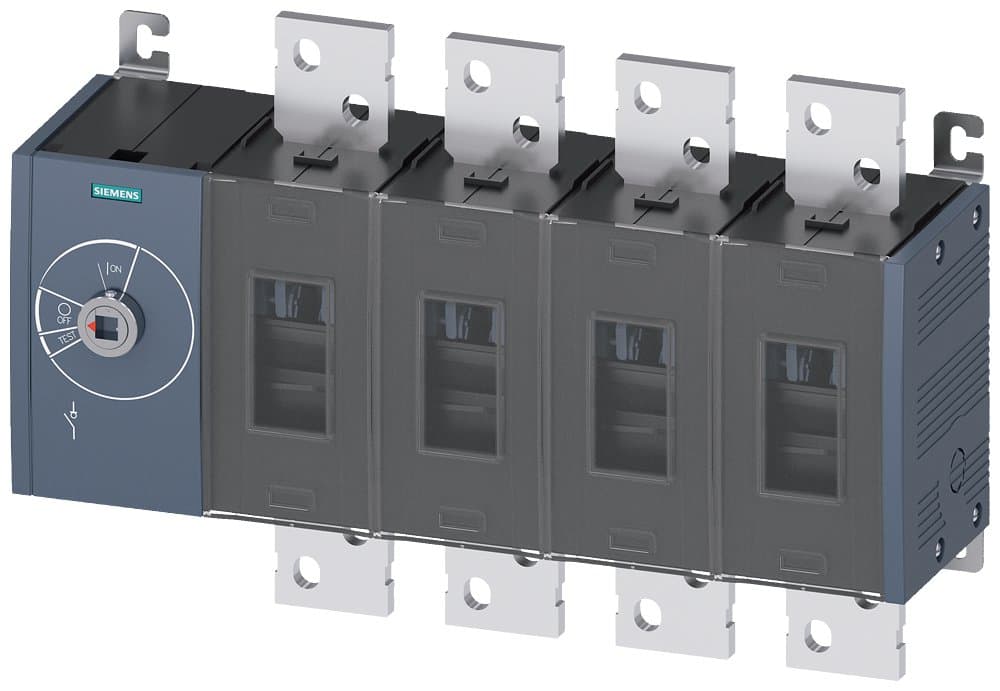

3KD5040-0RE10-0
Product ID:211496
Updated: 2026/7/2
Key Features
- 1Enhance safety with permanent switch-on/off under load.
- 2Mount flexibly on floor, rail, or busbar systems.
- 3Handle high currents up to 2000A for diverse applications.
- 4Ensure durability with IP65 protection in harsh environments.
- 5Meet UL 508 and UL 60947-4-1 standards for reliability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD Specification 5; Rated current 1000A, 4P, basic unit without handle, front operation mechanism on the left side of the switch, surface mounting, flat connection, |
| Mounting Type | Surface Mounting | Terminal Type | Flat Connection |
| Number of Poles | 4P | In(A) | 1000 |
| Specification | 3KD Specification 5 [1000-2000A] | Switch Type | Basic unit without handle, front operation mechanism on the left side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD5040-0RE10-0 |
Specifications may be subject to change without notice
