Key Features
- 1Handle 1000A currents for demanding industrial applications. 2、Control circuits precisely with the 4-pole lateral operating mechanism. 3、Perform safe on/off operations under full electrical load. 4、Ensure longevity with a robust, high-quality construction. 5、Install flexibly via floor, rail, or front-panel mounting.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD Specification 5; Rated Current 1000A; 4P; Basic unit without handle, side operation mechanism located on the left side of the switch; Surface mount; Flat connection |
| Mounting Type | Surface Mount | Terminal Type | Flat Connection |
| Number of Poles | 4P | In(A) | 1000 |
| Specification | 3KD Specification 5 [1000-2000A] | Switch Type | Basic unit without handle, side operation mechanism located on the left side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |

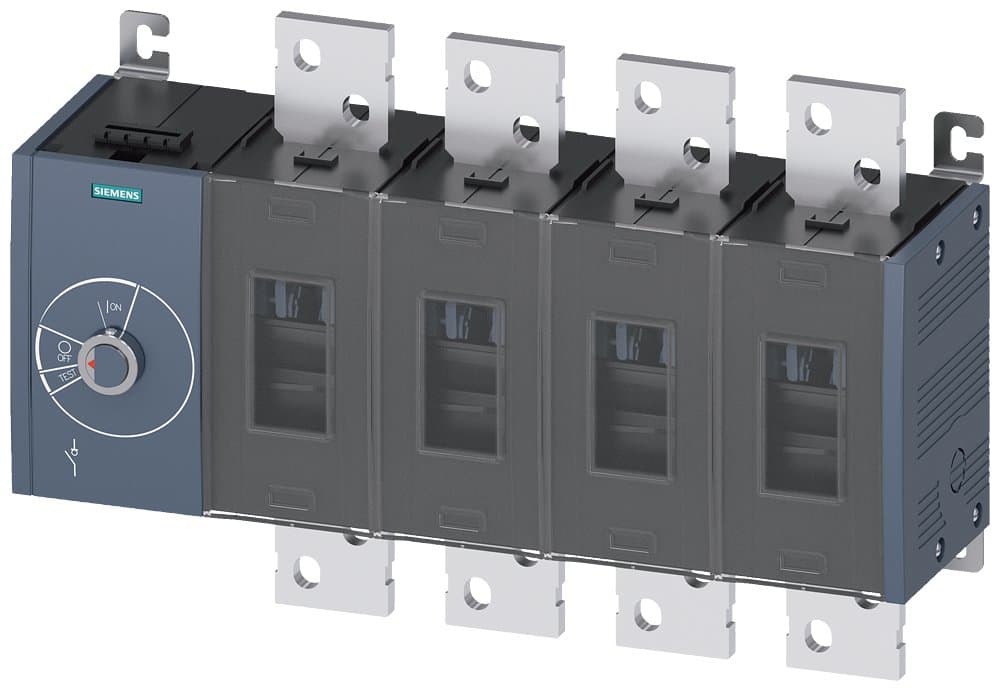

| Model | 3KD5044-0RE10-0 |
Specifications may be subject to change without notice
