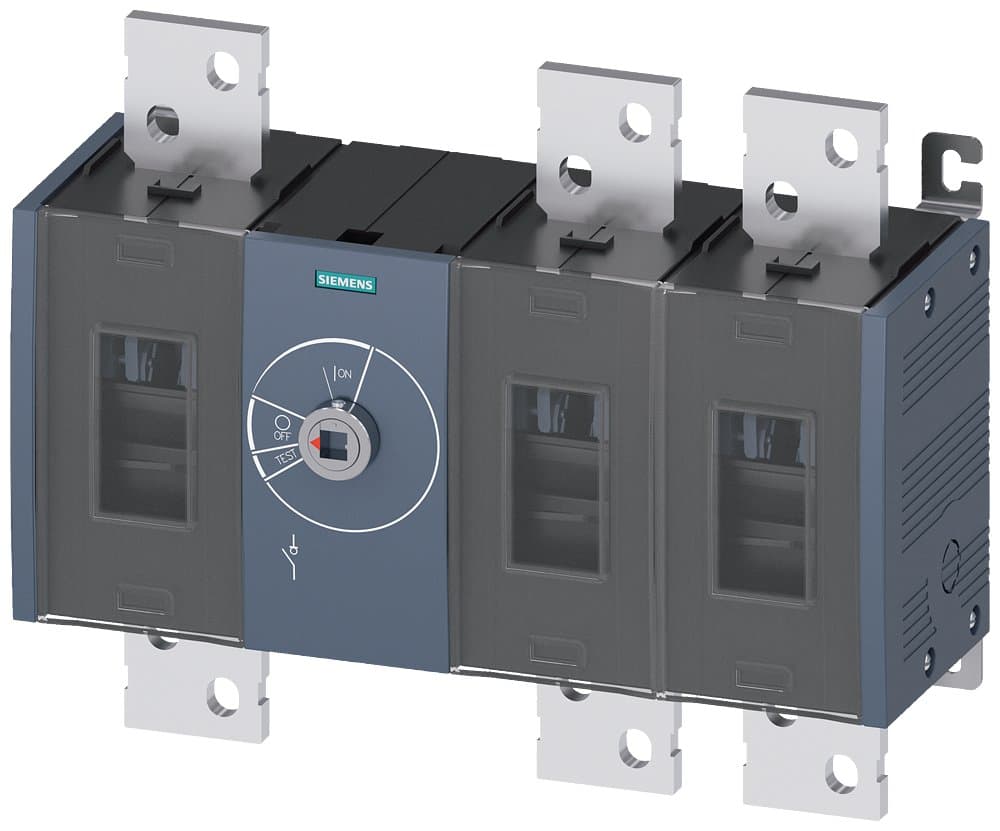

3KD5230-0RE20-0
Product ID:103732
Updated: 2026/7/2
Key Features
- 1Utilize a compact design for space-efficient panel installations.
- 2Handle high currents reliably with a 1250A rating.
- 3Choose versatile mounting options for floor or board setups.
- 4Ensure safety with advanced IP65 protection against dust and water.
- 5Enhance functionality with a wide range of compatible Siemens accessories.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD Specification 5; Rated current 1250A, 3P, basic unit without handle, front operation mechanism located at the center of the switch, surface mounting, flat connection, |
| Mounting Type | Surface Mounting | Terminal Type | Flat Connection |
| Number of Poles | 3P | In(A) | 1250 |
| Specification | 3KD Specification 5 [1000-2000A] | Switch Type | Basic unit without handle, front operation mechanism located at the center of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD5230-0RE20-0 |
Specifications may be subject to change without notice
