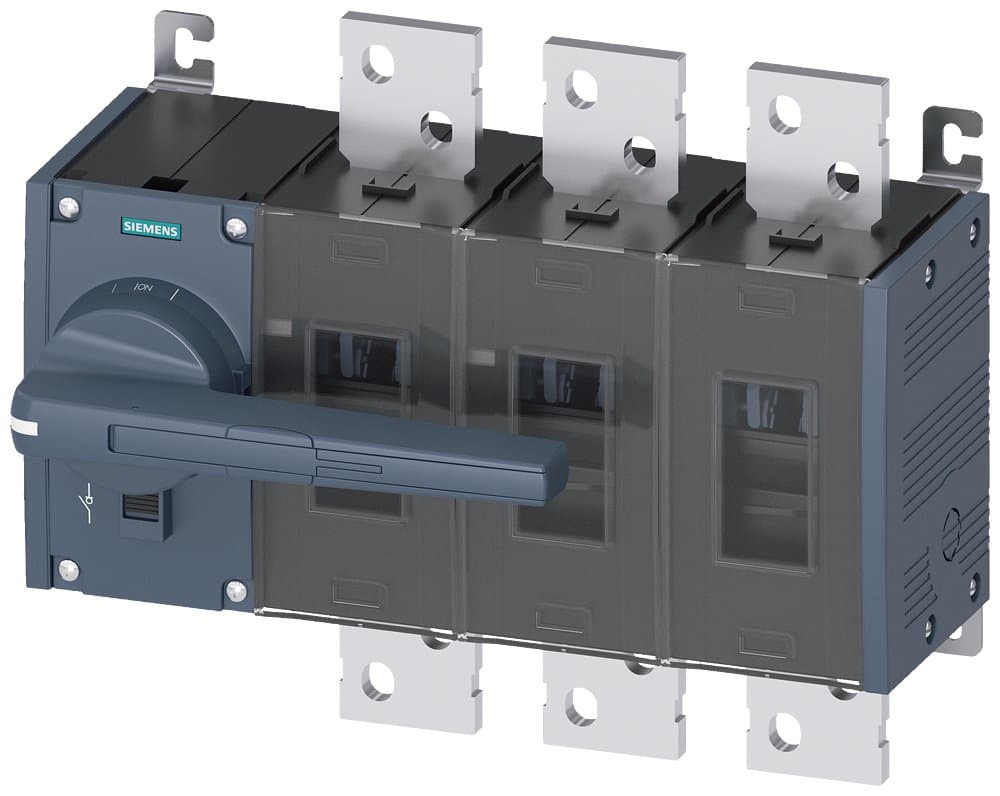

3KD5232-0RE10-0
Product ID:110982
Updated: 2026/7/2
Key Features
- 1Handle up to 1250A current with a reliable 3-pole design.
- 2Operate easily using the front-mounted long rotary knob.
- 3Fit into tight spaces thanks to the compact and efficient layout.
- 4Ensure safety with IP00 protection and 12 kV surge resistance.
- 5Utilize for main, safety, or maintenance switching applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD Specification 5; Rated current 1250A, 3P, complete set type, front operation, with direct front operation mechanism, gray handle, operating mechanism on the left side of the switch, surface mount, flat connection |
| Mounting Type | Surface Mount | Terminal Type | Flat Connection |
| Number of Poles | 3P | In(A) | 1250 |
| Specification | 3KD Specification 5 [1000-2000A] | Switch Type | Complete set type, front operation, with direct front operation mechanism, gray handle, operating mechanism on the left side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model | 3KD5232-0RE10-0 |
Specifications may be subject to change without notice
