3KD5430-0RE10-0
Product ID:224763
Updated: 2026/7/10
Key Features
- 1Ensure reliable operation with a high 1600A current rating.
- 2Connect versatile electrical systems using the 3-pole configuration.
- 3Access and control easily via the front operating mechanism.
- 4Enhance safety with a 1000V insulation voltage for durability.
- 5Deploy as a main or safety switch in various applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |

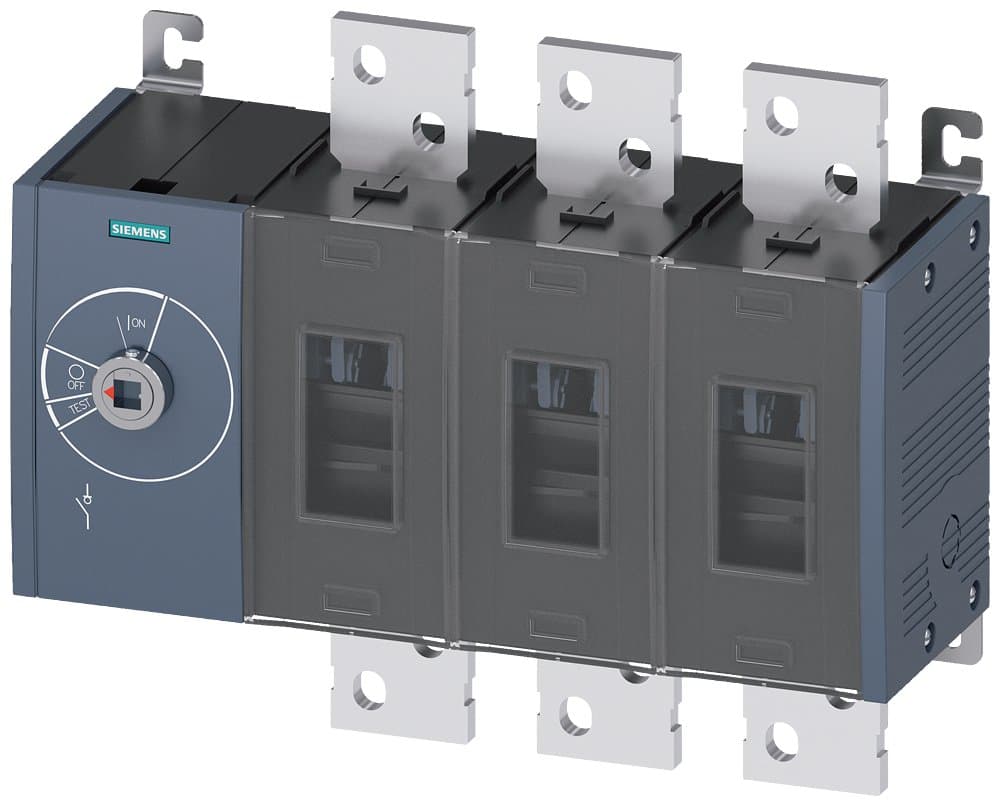

| Insulation Voltage (V) | 1000 | Description | 3KD Specification 5; Rated current 1600A, 3P, basic unit without handle, front operation mechanism on the left side of the switch, surface mounting, flat connection, |
| Mounting Type | Surface Mounting | Terminal Type | Flat Connection |
| Number of Poles | 3P | In(A) | 1600 |
| Specification | 3KD Specification 5 [1000-2000A] | Switch Type | Basic unit without handle, front operation mechanism on the left side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD5430-0RE10-0 |
Specifications may be subject to change without notice
