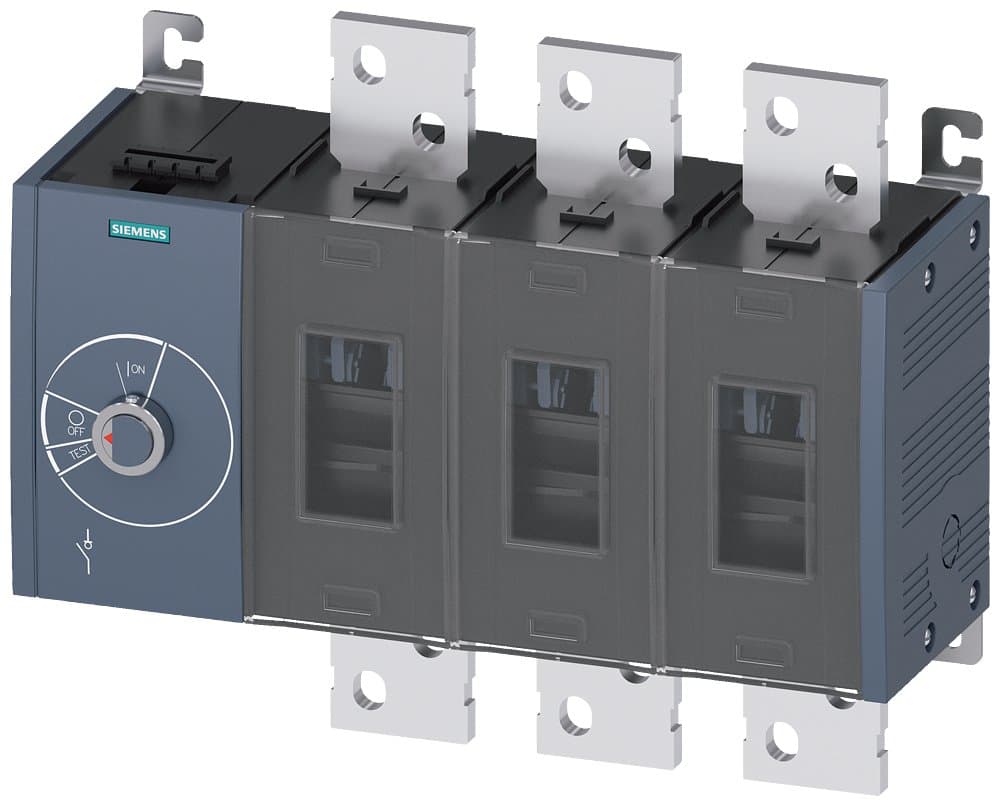

3KD5434-0RE10-0
Product ID:100007
Updated: 2026/7/7
Key Features
- 1Ensure reliable 1600A operation in demanding electrical environments.
- 2Protect personnel with permanent load switching and high safety standards.
- 3Simplify installation via versatile floor or rail mounting options.
- 4Meet global compliance with IEC 60947-3 and UL 508 certifications.
- 5Withstand short-circuit currents up to 6 kA for durable performance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD Specification 5; Rated Current 1600A; 3P; Basic unit without handle, side operation mechanism located on the left side of the switch; Surface mount; Flat connection |
| Mounting Type | Surface Mount | Terminal Type | Flat Connection |
| Number of Poles | 3P | In(A) | 1600 |
| Specification | 3KD Specification 5 [1000-2000A] | Switch Type | Basic unit without handle, side operation mechanism located on the left side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD5434-0RE10-0 |
Specifications may be subject to change without notice
