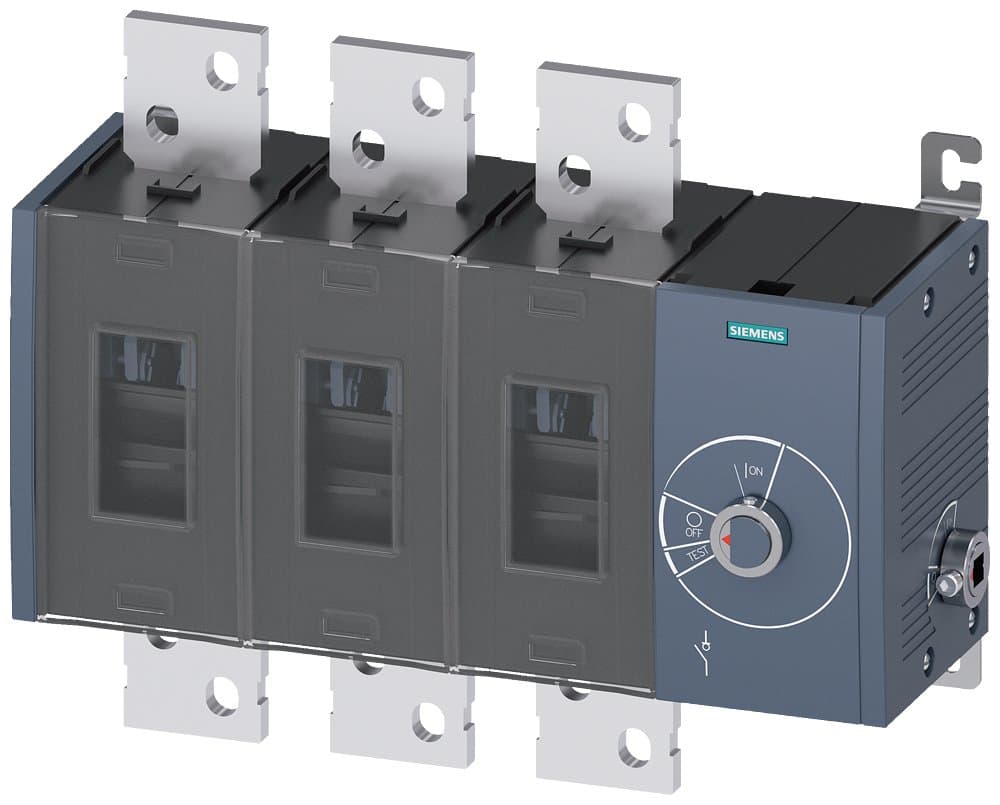

3KD5634-0RE40-0
Product ID:211340
Updated: 2026/7/2
Key Features
- 1Handle high-current demands up to 2000A reliably.
- 2Install efficiently with a compact Frame 5 design.
- 3Operate reliably using the 3-pole lateral drive right basic unit.
- 4Achieve precise switching with enhanced tolerance compensation.
- 5Enable safe emergency switching-off via rotary mechanism.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD Specification 5; Rated Current 2000A; 3P; Basic unit without handle, side operation mechanism located on the right side of the switch; Flat connection |
| Mounting Type | Surface Mount | Terminal Type | Flat Connection |
| Number of Poles | 3P | In(A) | 2000 |
| Specification | 3KD Specification 5 [1000-2000A] | Switch Type | Basic unit without handle, side operation mechanism located on the right side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD5634-0RE40-0 |
Specifications may be subject to change without notice
