Key Features
- 1Handle high currents up to 2000A reliably.
- 2Configure versatile 4-pole switching options.
- 3Operate easily with a direct drive mechanism.
- 4Ensure secure connections with grey flat terminals.
- 5Access conveniently via front-left operation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD Specification 5; Rated Current 2000A; 4P; Kit type, front operation, with direct front operation mechanism, gray handle, operating mechanism on the left side of the switch; Flat connection |
| Installation Type | Surface Mount | Terminal Type | Flat Connection |
| Number of Poles | 4P | In(A) | 2000 |
| Specification | 3KD Specification 5 [1000-2000A] | Switch Type | Kit type, front operation, with direct front operation mechanism, gray handle, operating mechanism on the left side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |

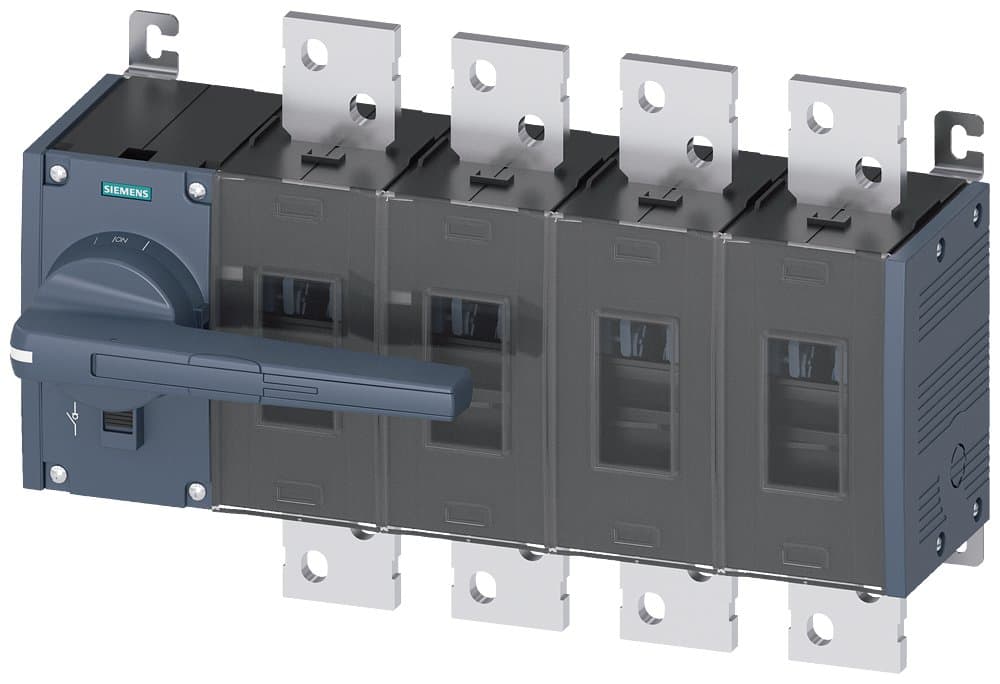

| Model Number | 3KD5642-0RE10-0 |
Specifications may be subject to change without notice
