Key Features
- 1Handle high-current switching up to 2000A reliably. 2、Utilize compact Frame Size 5 for space-saving installations. 3、Control operations precisely with the 4-pole lateral drive. 4、Install the basic unit without a handle for straightforward setup. 5、Ensure secure connections with the flat terminal design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD Specification 5; Rated Current 2000A; 4P; Basic unit without handle, side operation mechanism located on the right side of the switch; Flat connection |
| Mounting Type | Surface Mount | Terminal Type | Flat Connection |
| Number of Poles | 4P | In(A) | 2000 |
| Specification | 3KD Specification 5 [1000-2000A] | Switch Type | Basic unit without handle, side operation mechanism located on the right side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |

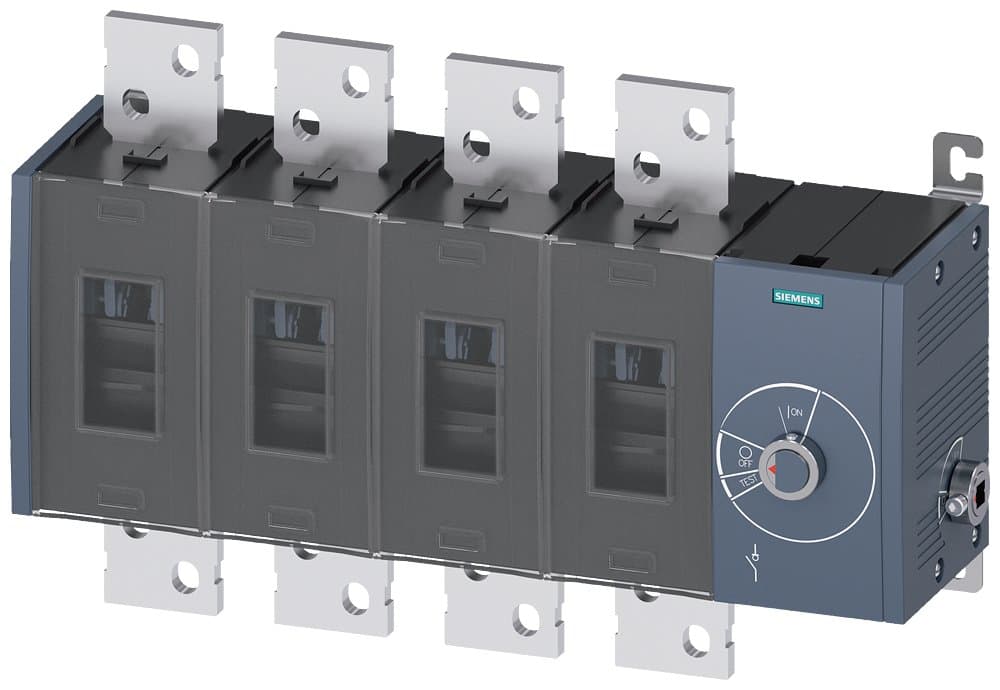

| Model Number | 3KD5644-0RE40-0 |
Specifications may be subject to change without notice
