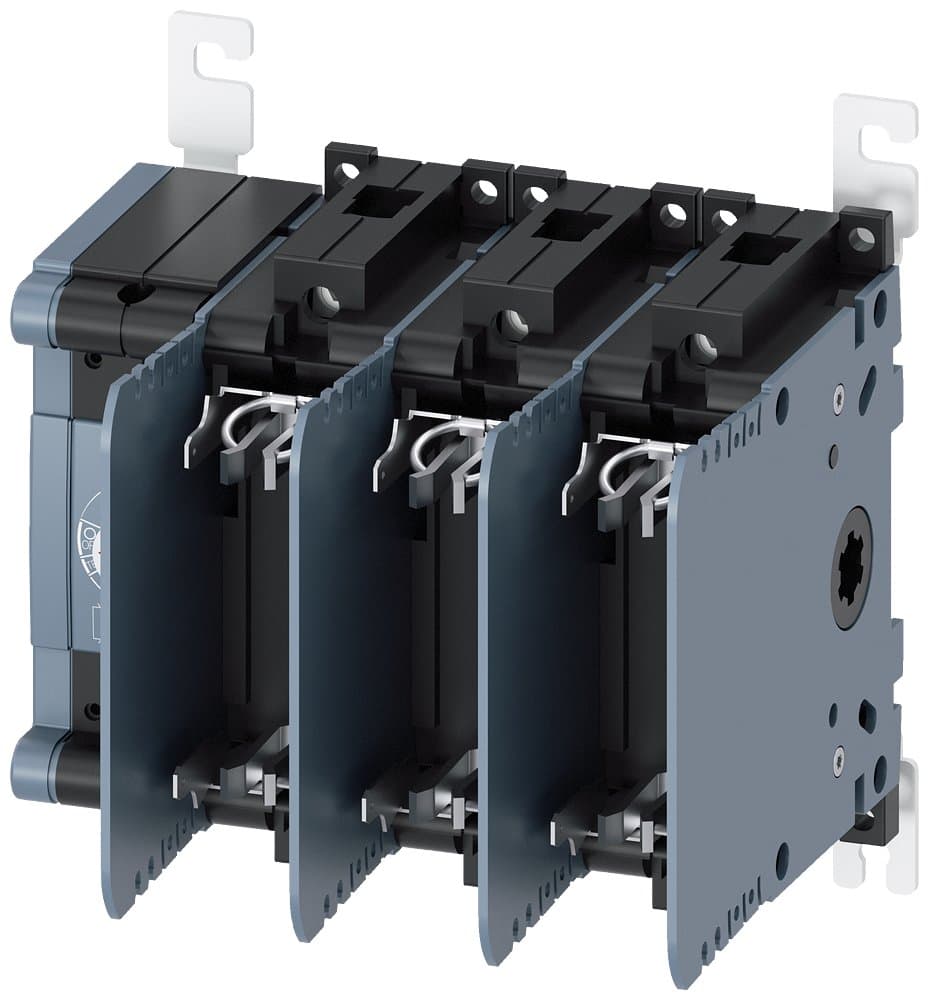

3KF1303-0LB51
Product ID:204983
Updated: 2026/4/4
Key Features
- 1Ensure reliable 32A low-voltage protection for safe operations. 2、Integrate seamlessly with NH fuse dividers for semiconductor safety. 3、Optimize panel space using the compact three-pole design. 4、Simplify manual or motorized operation via the front mechanism. 5、Reduce installation time with ready-to-use box terminal connections.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KF SITOR (Fast Blow), Rated Current 32A, Basic Unit - Front Operation Mechanism, Without Handle, Operation Mechanism Module Located at the Center of the Switch, Surface Mount |
| Mounting Type | Surface Mount | Fuse Specification | Size: 00/000 |
| Terminal Type | Box Terminal | Number of Poles | 3P |
| In(A) | 32 | Specification | 3KF1_32 |
| Switch Type | Basic Unit, Front Operation Mechanism, Without Handle, Operation Mechanism Module Located at the Center of the Switch | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KF1303-0LB51 |
Specifications may be subject to change without notice
