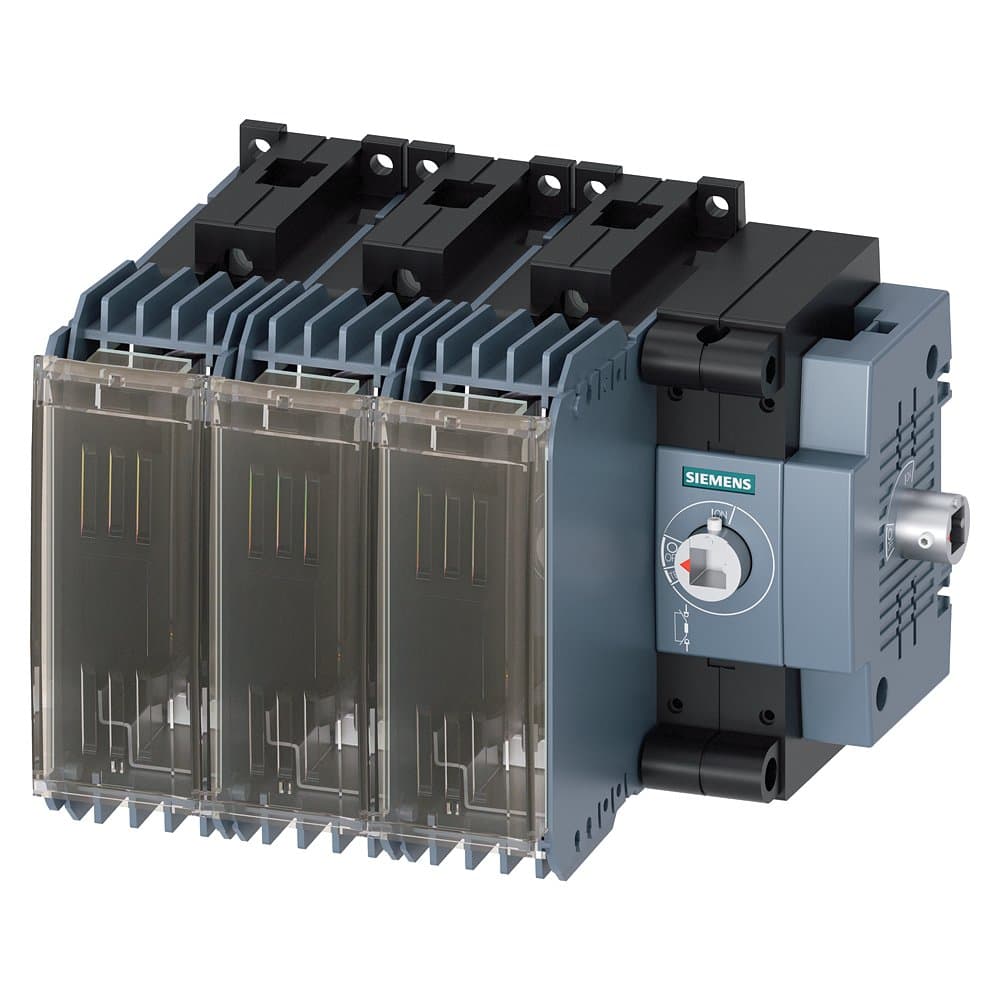

3KF1303-4RB11
Product ID:115258
Updated: 2026/7/2
Key Features
- 1Ensure safe operation with immediate emergency switching-off capability.
- 2Eliminate adjustments with tolerance compensation-free performance.
- 3Save panel space using the compact 75x75 mm design.
- 4Withstand heavy-duty use via robust 8x8 mm shaft construction.
- 5Operate easily with the included complete unit and handle.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V): | 220VDC/440VDC | AC Rated Voltage (V): | 690 |
| Insulation Voltage (V): | 1000 | Description | 3KF LV HRC (General Fuse), Rated Current 32A, Basic Unit - Side Operation Mechanism, No Handle, Operation Mechanism Module Located on the Right Side of the Switch, Surface Mounting |
| Mounting Type: | Surface Mounting | Fuse Specification: | Size: 00/000 |
| Terminal Type: | Box Terminal | Number of Poles: | 3P |
| In(A): | 32 | Specification: | 3KF1_32 |
| Switch Type: | Basic Unit, Side Operation Mechanism, No Handle, Operation Mechanism Module Located on the Right Side of the Switch | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KF1303-4RB11 |
Specifications may be subject to change without notice
