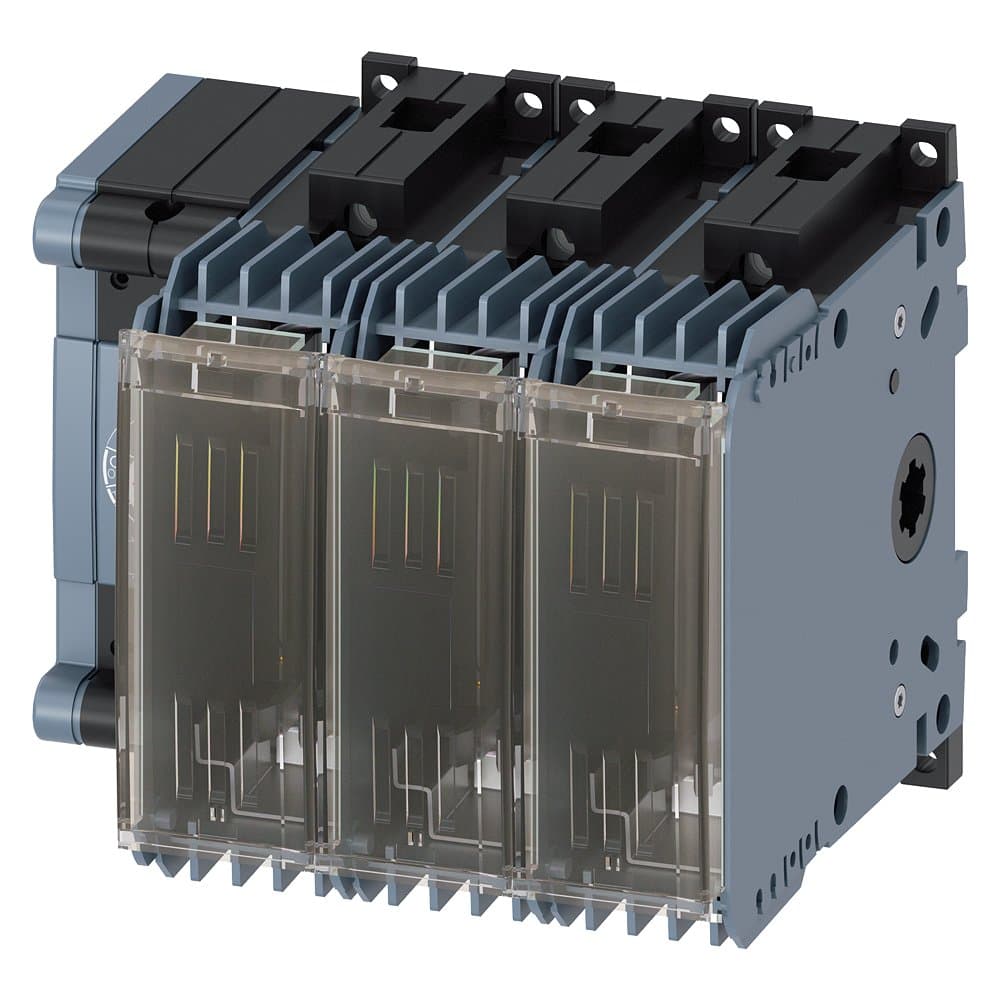

3KF1306-0LB11
Product ID:164247
Updated: 2026/4/5
Key Features
- 1Handle up to 63A current for reliable power distribution. 2、Utilize a 3-pole design for versatile electrical configurations. 3、Ensure safety with an enclosed, protected design. 4、Operate easily via the left-side front mechanism. 5、Meet eClass, ETIM, and UL standards for assured quality.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V): | 220VDC/440VDC | AC Rated Voltage (V): | 690 |
| Insulation Voltage (V): | 1000 | Description | 3KF LV HRC (General Fuse), Rated Current 63A, Basic Unit - Front Operation Mechanism, No Handle, Operation Mechanism Module on the Left Side of the Switch, Surface Mounting |
| Mounting Type: | Surface Mounting | Fusing Rating: | Size:00/000 |
| Terminal Type: | Box Terminal | Number of Poles: | 3P |
| In(A): | 63 | Specification: | 3KF1_63 |
| Switch Type: | Basic Unit, Front Operation Mechanism, No Handle, Operation Mechanism Module on the Left Side of the Switch | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KF1306-0LB11 |
Specifications may be subject to change without notice
