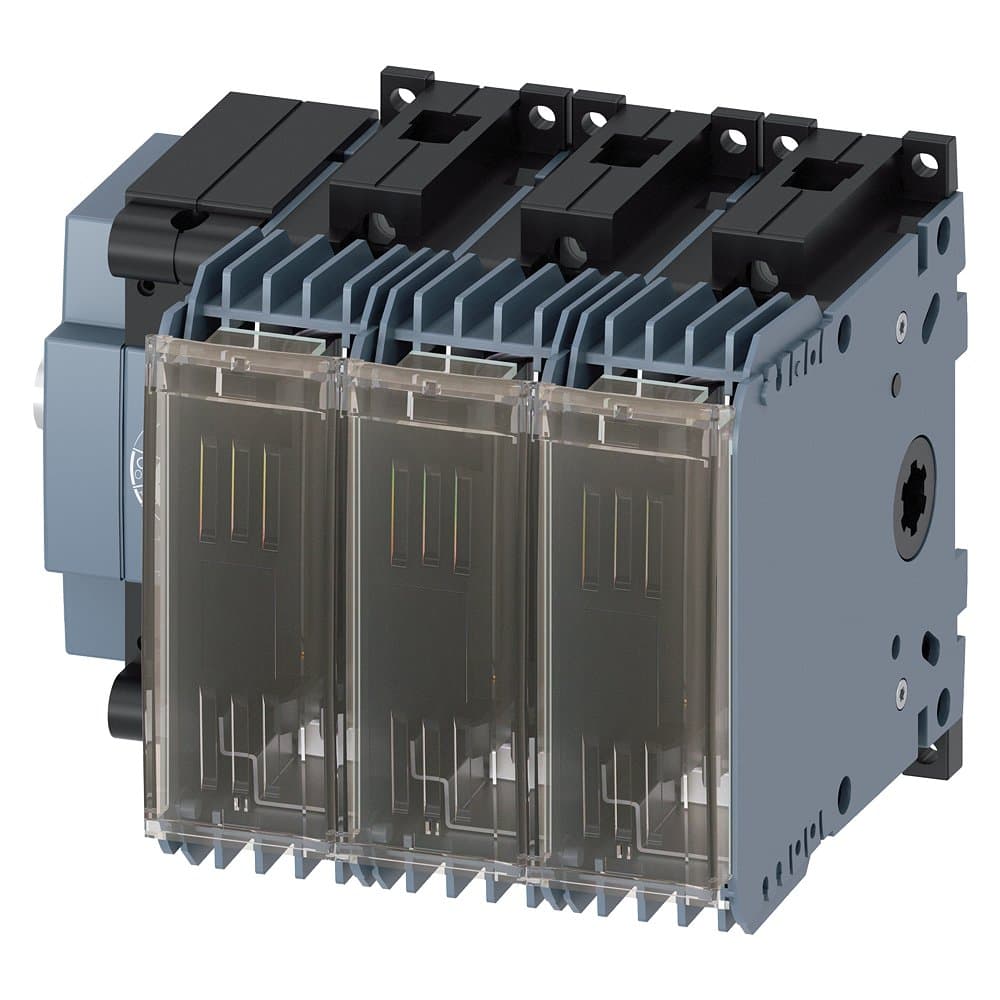

3KF1308-4LB11
Product ID:106413
Updated: 2026/7/2
Key Features
- 1Optimize panel space with a compact left-side wall drive design.
- 2Ensure reliable circuit protection with an 80A current rating.
- 3Safeguard three-phase systems using a robust 3-pole configuration.
- 4Enhance safety with compatibility for NH fuse size 000.
- 5Reduce maintenance needs through durable construction and materials.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V): | 220VDC/440VDC | AC Rated Voltage (V): | 690 |
| Insulation Voltage (V): | 1000 | Description | 3KF LV HRC (General Fuse), Rated Current 80A, Basic Unit - Side Operation Mechanism, Without Handle, Operation Mechanism Module Located on the Left Side of the Switch, Surface Mounting |
| Mounting Type: | Surface Mounting | Fuse Specification: | Size: 00/000 |
| Terminal Type: | Box Terminal | Number of Poles: | 3P |
| In(A): | 80 | Specification: | 3KF1_80 |
| Switch Type: | Basic Unit, Side Operation Mechanism, Without Handle, Operation Mechanism Module Located on the Left Side of the Switch | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KF1308-4LB11 |
Specifications may be subject to change without notice
