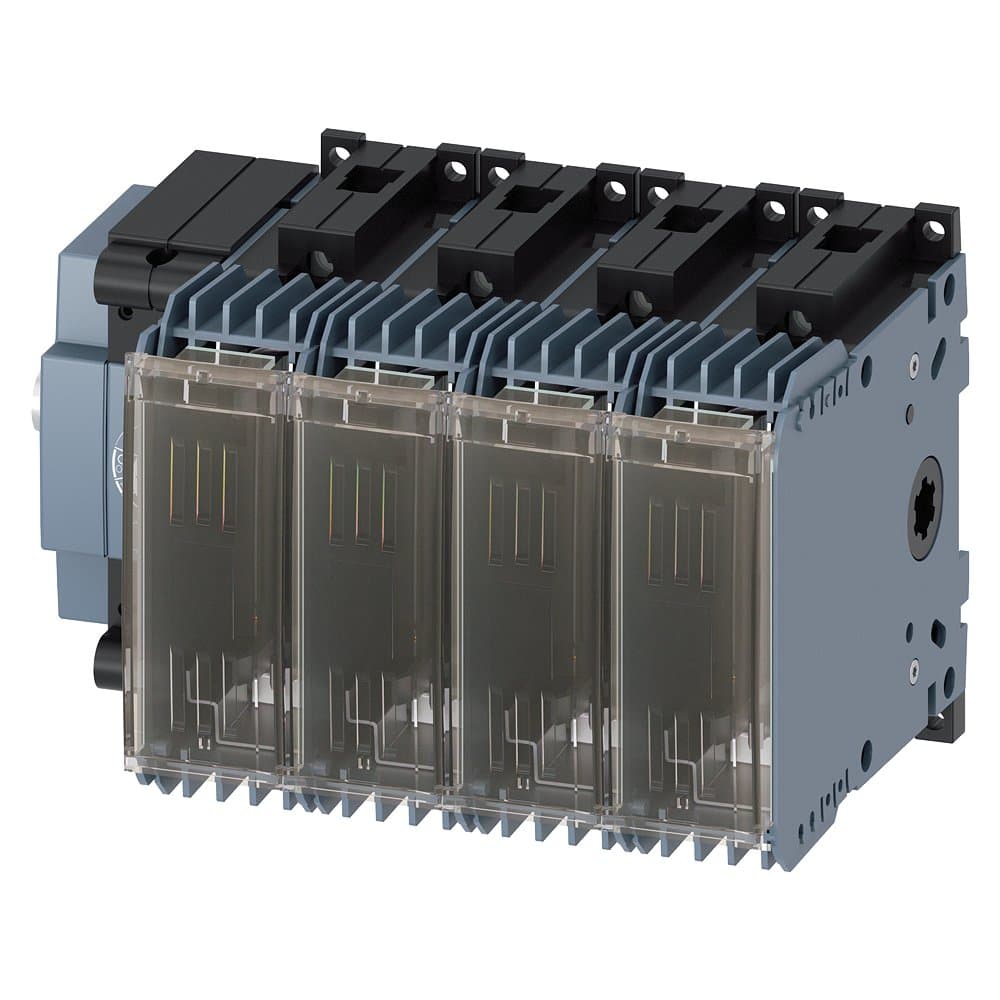

3KF1403-4LB11
Product ID:166636
Updated: 2026/7/3
Key Features
- 1Handle up to 32A for reliable power distribution.
- 2Utilize a compact 4-pole design to save panel space.
- 3Enhance safety with permanent on/off capabilities.
- 4Mount flexibly on floors, rails, or front panels.
- 5Meet IEC and UL standards for assured compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V): | 220VDC/440VDC | AC Rated Voltage (V): | 690 |
| Insulation Voltage (V): | 1000 | Description | 3KF LV HRC (general fuse), rated current 32A, basic unit — side operation mechanism, without handle, operation mechanism module located on the left side of the switch, surface mount |
| Mounting Type: | Surface mount | Fuse Specification: | Size: 00/000 |
| Terminal Type: | Box terminal | Number of Poles: | 4P |
| In(A): | 32 | Specification: | 3KF1_32 |
| Switch Type: | Basic unit, side operation mechanism, without handle, operation mechanism module located on the left side of the switch | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KF1403-4LB11 |
Specifications may be subject to change without notice
