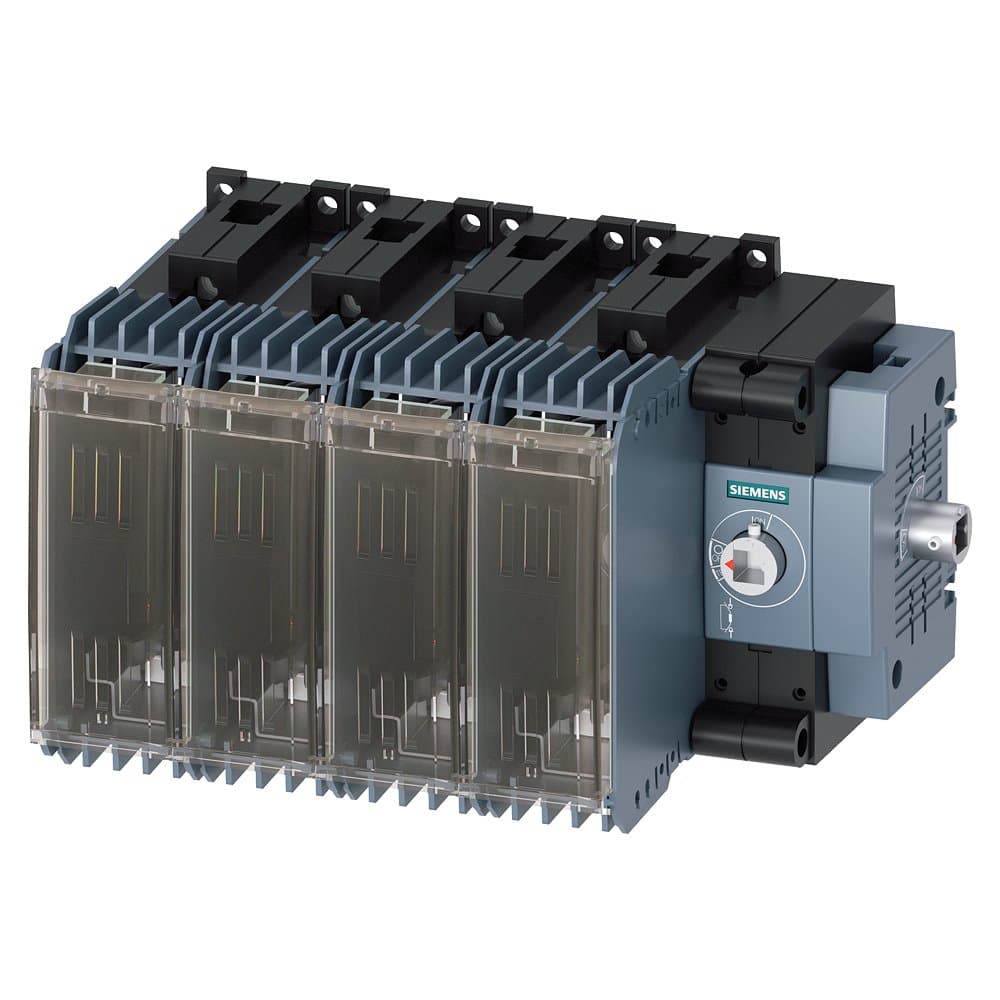

3KF1406-4RB11
Product ID:221171
Updated: 2026/6/20
Key Features
- 1Safeguard circuits with a high 63 A rated current.
- 2Install easily in tight spaces thanks to a compact wall-mount design.
- 3Manage versatile installations using the 4-pole configuration.
- 4Withstand high short-circuit currents up to 6 kA for durability.
- 5Mount flexibly on floors, busbars, or front panels.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V): | 220VDC/440VDC | AC Rated Voltage (V): | 690 |
| Insulation Voltage (V): | 1000 | Description | 3KF LV HRC (General Fuse), Rated Current 63A, Basic Unit — Side Operation Mechanism, No Handle, Operation Mechanism Module Located on the Right Side of the Switch, Surface Mounting |
| Mounting Type: | Surface Mounting | Fuse Specification: | Size: 00/000 |
| Terminal Type: | Box Terminal | Number of Poles: | 4P |
| In(A): | 63 | Specification: | 3KF1_63 |
| Switch Type: | Basic Unit, Side Operation Mechanism, No Handle, Operation Mechanism Module Located on the Right Side of the Switch | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KF1406-4RB11 |
Specifications may be subject to change without notice
