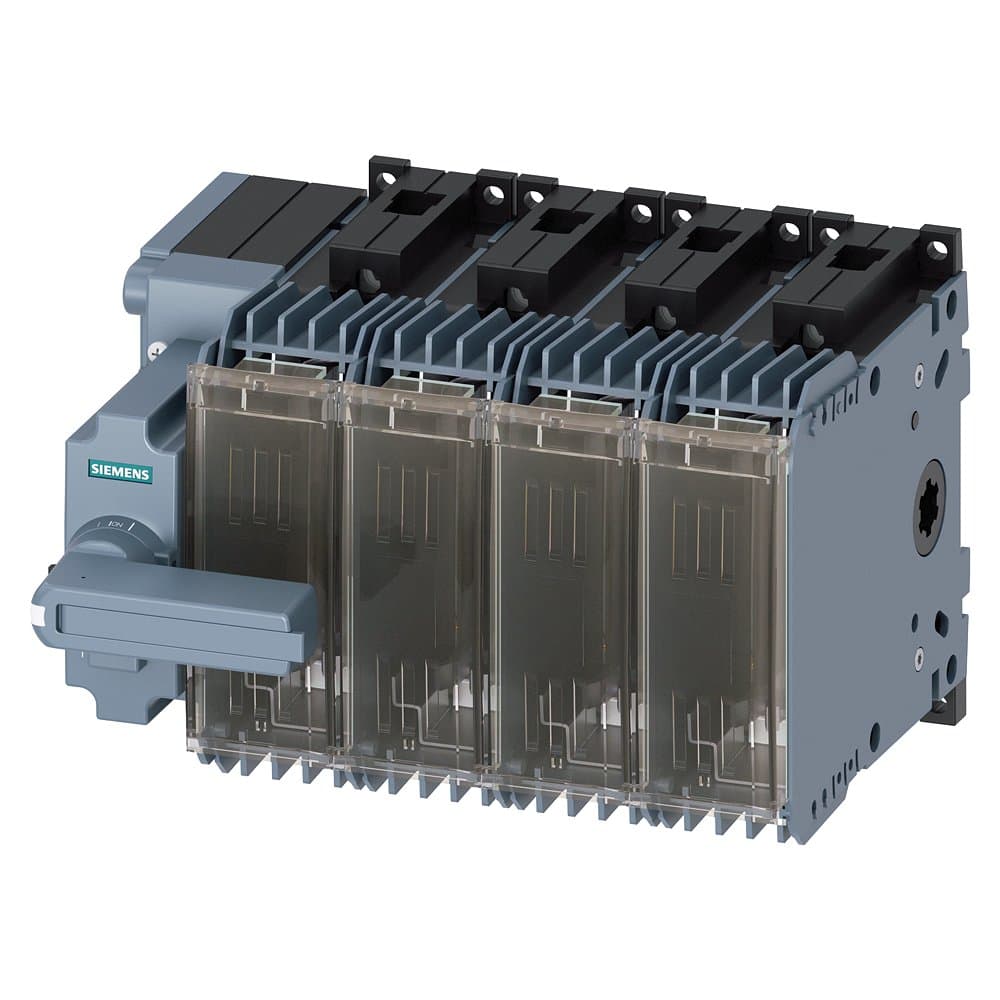

3KF1408-2LB11
Product ID:205944
Updated: 2026/7/2
Key Features
- 1Handle up to 80A for reliable power distribution and protection.
- 2Utilize a compact Size 1 design to save valuable panel space.
- 3Integrate seamlessly with standard NH 000 HRC fuses for safety compliance.
- 4Operate the mechanism conveniently from the front for easy access.
- 5Benefit from a direct drive and box terminals for simple installation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KF LV HRC (General Fuse), rated current 80A, kit type, front operation, with direct operating mechanism gray handle, surface mounting |
| Mounting Type | Surface Mounting | Fuse Specification | Size: 00/000 |
| Terminal Type | Box Terminal | Number of Poles | 4P |
| In(A) | 80 | Specification | 3KF1_80 |
| Switch Type | Kit type, front operation, with direct operating mechanism gray handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KF1408-2LB11 |
Specifications may be subject to change without notice
