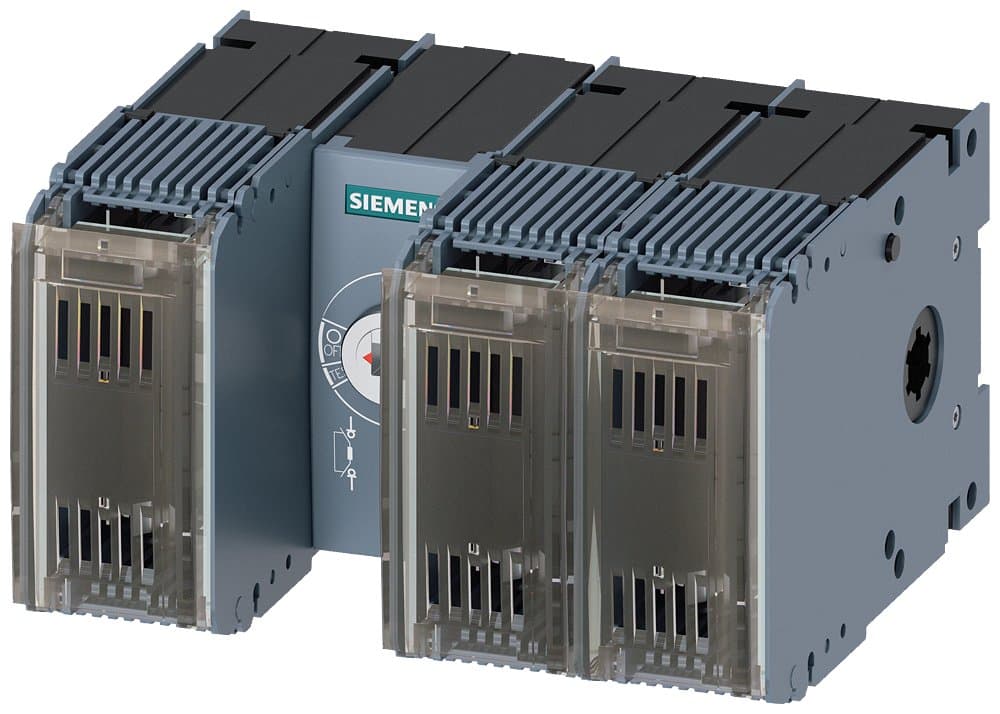

3KF2312-0MR11
Product ID:186715
Updated: 2026/8/10
Key Features
- 1Handle 125A loads with a reliable 3-pole LV HRC-fuse design.
- 2Utilize compact Size 2 for versatile electrical installations.
- 3Operate easily via the front-mounted drive mechanism.
- 4Ensure compliance with RoHS and REACH standards since 2019.
- 5Integrate into the SENTRON 3KF family for flexible configurations.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KF LV HRC (General Fuse), rated current 125A, basic unit — front operating mechanism, without handle, operating mechanism module located at the center of the switch, surface mount |
| Mounting Type | Surface mount | Fuse Specification | Size: 00/000 |
| Terminal Type | Rear flat terminal | Number of Poles | 3P |
| In(A) | 125 | Specification | 3KF2_125 |
| Switch Type | Basic unit, front operating mechanism, without handle, operating mechanism module located at the center of the switch | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KF2312-0MR11 |
Specifications may be subject to change without notice
