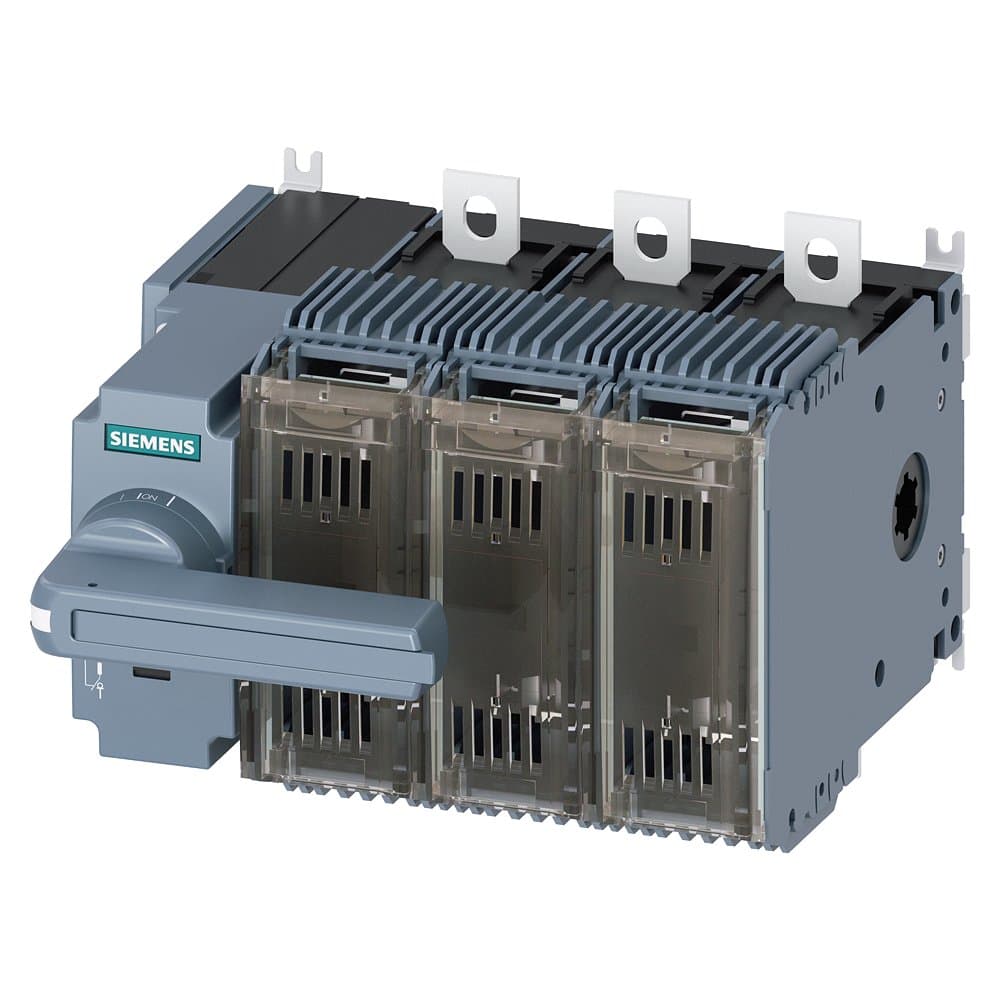

3KF2316-2LF11
Product ID:212000
Updated: 2026/7/2
Key Features
- 1Handle up to 160A current for reliable low-voltage operation.
- 2Utilize a 3-pole configuration for balanced three-phase systems.
- 3Integrate seamlessly with LV HRC fuses for enhanced protection.
- 4Ensure operator safety with load-breaking switch-on/off capability.
- 5Choose from multiple mounting options for flexible installation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V): | 220VDC/440VDC | AC Rated Voltage (V): | 690 |
| Insulation Voltage (V): | 1000 | Description | 3KF LV HRC (General Fuse), rated current 160A, kit type, front operation, with direct operating mechanism gray handle, surface mounting |
| Mounting Type: | Surface Mounting | Fuse Specification: | Size: 00/000 |
| Terminal Type: | Flat Terminal | Number of Poles: | 3P |
| In(A): | 160 | Specification: | 3KF2_160 |
| Switch Type: | Kit type, front operation, with direct operating mechanism gray handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KF2316-2LF11 |
Specifications may be subject to change without notice
