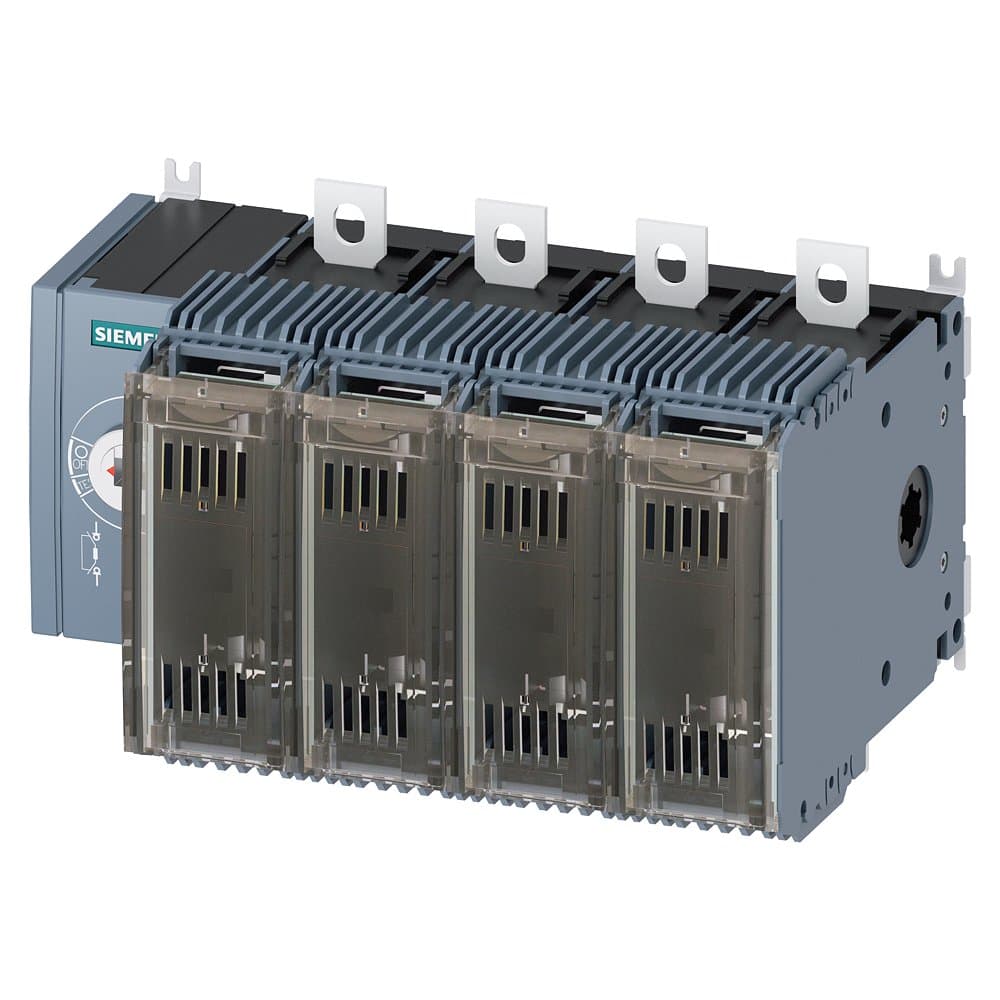

3KF2412-0LF11
Product ID:198083
Updated: 2026/7/3
Key Features
- 1Handle up to 125A with integrated fuse protection.
- 2Utilize a compact design for space-constrained installations.
- 3Choose from front or floor mounting for application flexibility.
- 4Deploy the 4-pole configuration for enhanced circuit control.
- 5Ensure reliable operation meeting IEC 60947-3 standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V): | 220VDC/440VDC | AC Rated Voltage (V): | 690 |
| Insulation Voltage (V): | 1000 | Description | 3KF LV HRC (General Fuse), Rated Current 125A, Basic Unit - Front Operation Mechanism, No Handle, Operation Mechanism Module on the Left Side of the Switch, Surface Mounting |
| Mounting Type: | Surface Mounting | Fuse Specification: | Size: 00/000 |
| Terminal Type: | Flat Terminal | Number of Poles: | 4P |
| In(A): | 125 | Specification: | 3KF2_125 |
| Switch Type: | Basic Unit, Front Operation Mechanism, No Handle, Operation Mechanism Module on the Left Side of the Switch | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KF2412-0LF11 |
Specifications may be subject to change without notice
