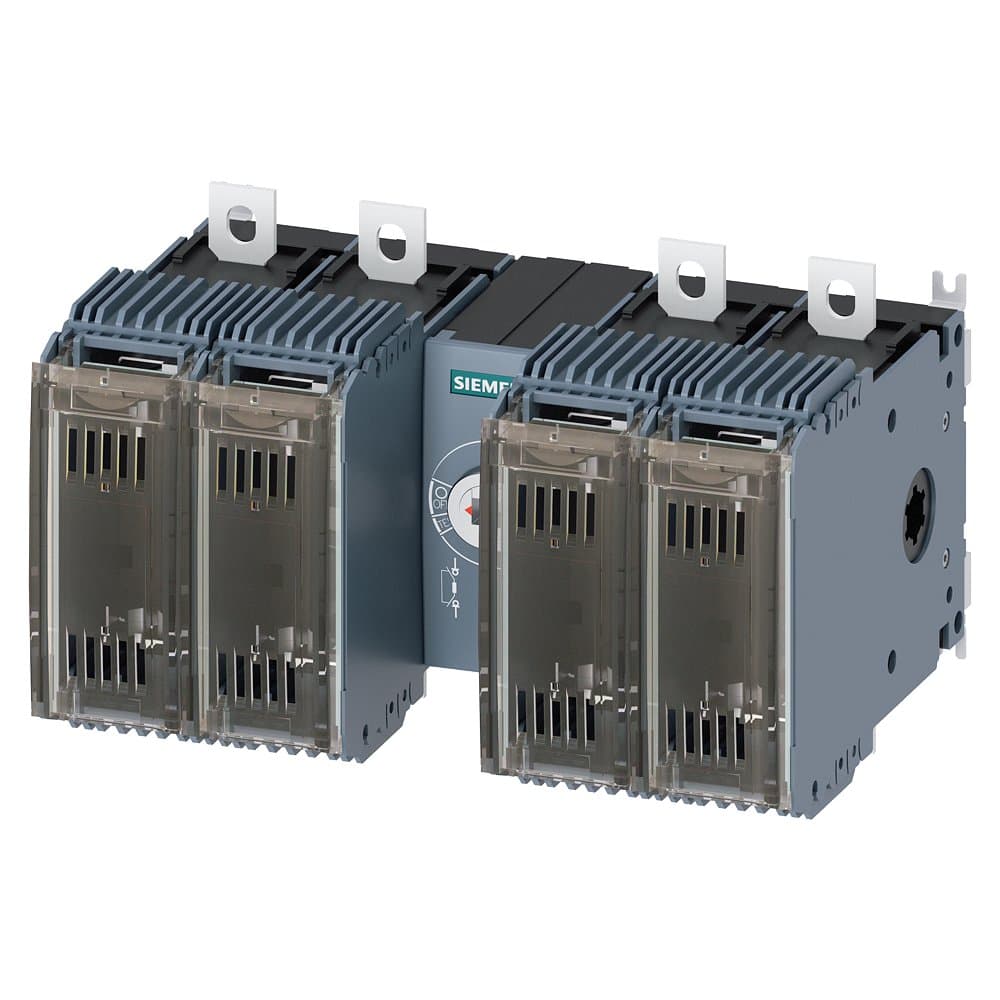

3KF2412-0MF11
Product ID:166655
Updated: 2026/7/3
Key Features
- 1Handle up to 125A for reliable LV applications.
- 2Utilize a compact design for space-constrained panels.
- 3Operate safely with a front-mounted drive mechanism.
- 4Configure for comprehensive 4-pole switching solutions.
- 5Protect circuits with LV HRC fuse compatibility.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KF LV HRC (General Fuse), Rated Current 125A, Basic Unit - Front Operation Mechanism, No Handle, Operation Mechanism Module Located at the Center of the Switch, Surface Mount |
| Mounting Type | Surface Mount | Fuse Specification | Size: 00/000 |
| Terminal Type | Flat Terminal | Number of Poles | 4P |
| In(A) | 125 | Specification | 3KF2_125 |
| Switch Type | Basic Unit, Front Operation Mechanism, No Handle, Operation Mechanism Module Located at the Center of the Switch | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KF2412-0MF11 |
Specifications may be subject to change without notice
