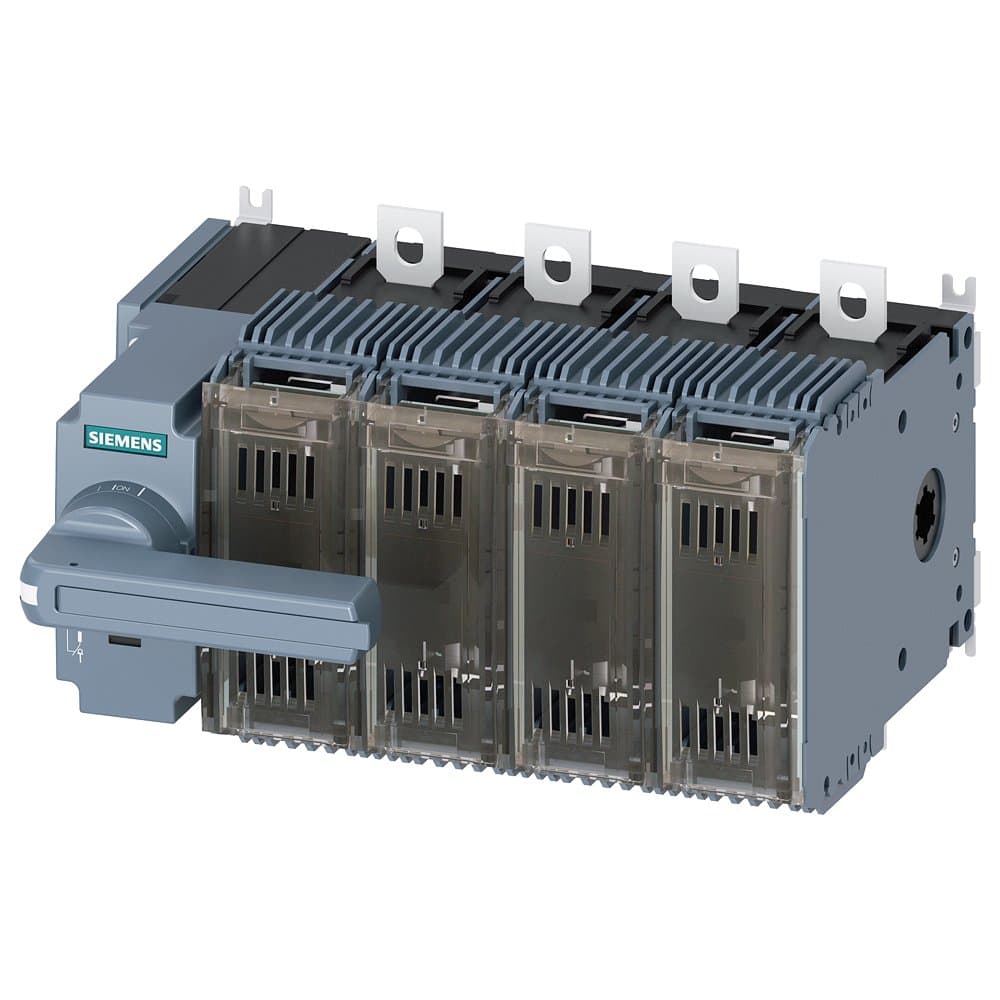

3KF2412-2LF11
Product ID:201263
Updated: 2026/7/3
Key Features
- 1Protect against electrical accidents with integrated locking and touch protection.
- 2Mount easily on standard rails for frame sizes up to 125 A.
- 3Ensure high system availability with rugged, high short-circuit strength technology.
- 4Apply across various uses including LV HRC fuse sizes 000 and 00.
- 5Enhance safety with an automatically interlocked fuse cover.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KF LV HRC (General Fuse), rated current 125A, kit type, front operation, with direct operating mechanism gray handle, surface mounting |
| Mounting Type | Surface Mounting | Fuse Specification | Size: 00/000 |
| Terminal Type | Flat Terminal | Number of Poles | 4P |
| In(A) | 125 | Specification | 3KF2_125 |
| Switch Type | Kit type, front operation, with direct operating mechanism gray handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KF2412-2LF11 |
Specifications may be subject to change without notice
