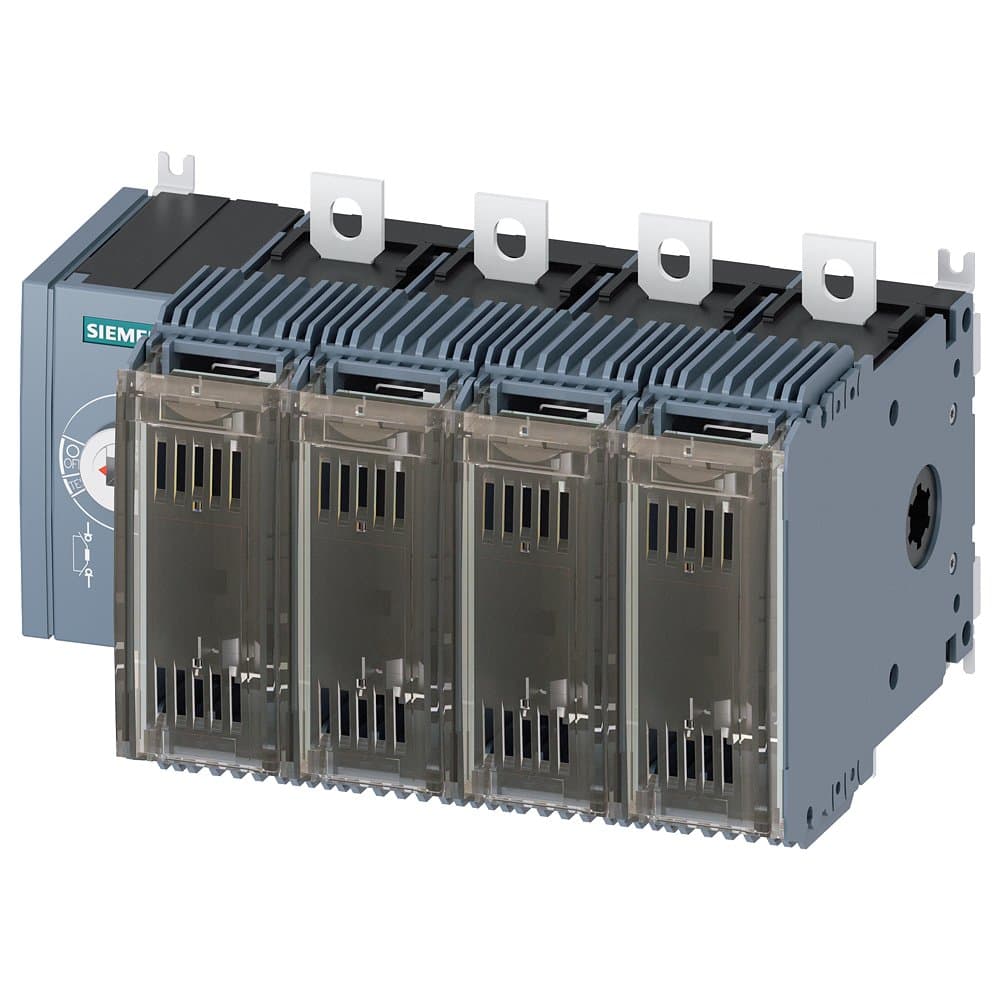

3KF2412-4LF11
Product ID:176120
Updated: 2026/8/21
Key Features
- 1Ensure safe load switching with the 125A, 4-pole Siemens 3KF2412-4LF11.
- 2Protect against electric shock with reliable disconnection under load.
- 3Save panel space using the compact 100 x 100 mm footprint.
- 4Gain durable performance from the robust door-coupling mechanism.
- 5Meet safety standards with UL-certified construction for reliability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KF LV HRC (General Fuse), rated current 125A, basic unit — side operation mechanism, no handle, operation mechanism module located on the left side of the switch, surface mount |
| Mounting Type | Surface mount | Fuse Specification | Size: 00/000 |
| Terminal Type | Flat terminal | Number of Poles | 4P |
| In(A) | 125 | Specification | 3KF2_125 |
| Switch Type | Basic unit, side operation mechanism, no handle, operation mechanism module located on the left side of the switch | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KF2412-4LF11 |
Specifications may be subject to change without notice
