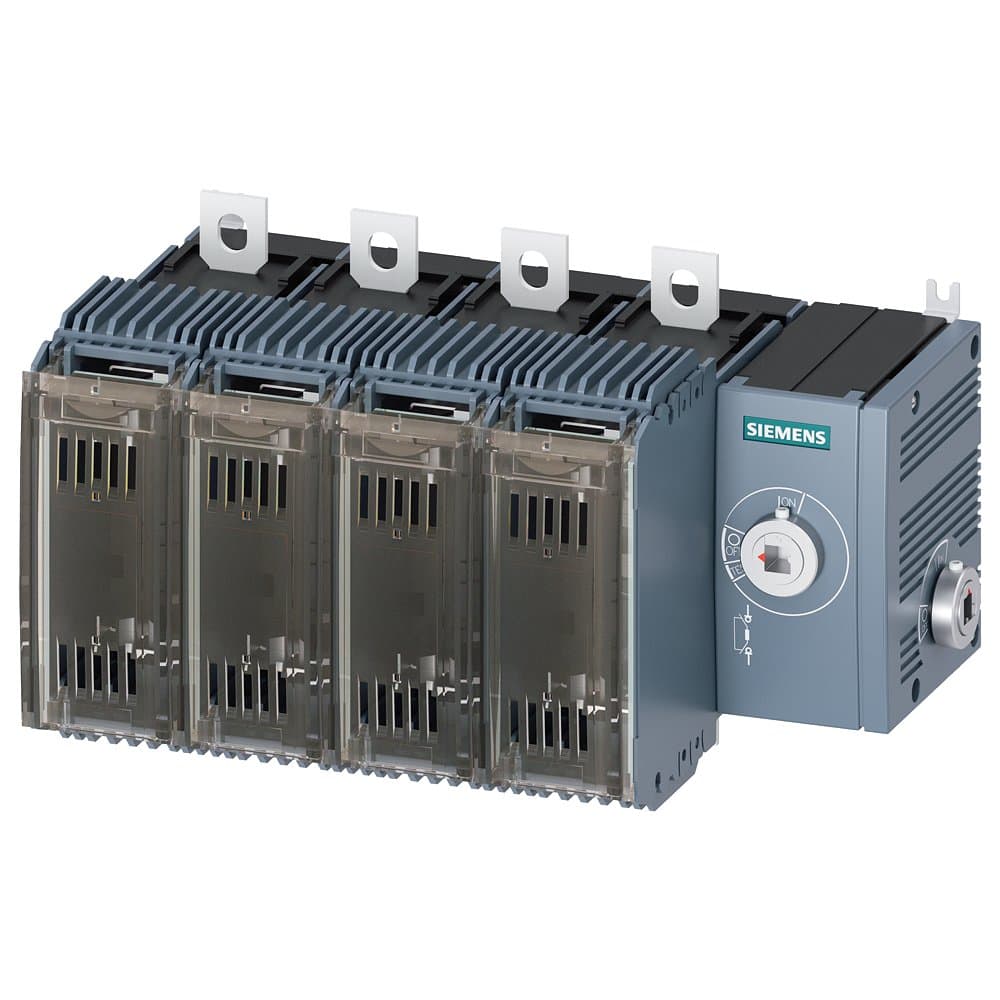

3KF2416-4RF11
Product ID:148385
Updated: 2026/9/9
Key Features
- 1Save space with a compact, wall-mounted design.
- 2Handle high currents efficiently with a 160 A rating.
- 3Ensure compatibility for LV HRC fuse sizes 000 and 00.
- 4Rely on durable construction with robust mechanical parts.
- 5Operate easily via front and side manual controls.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V): | 220VDC/440VDC | AC Rated Voltage (V): | 690 |
| Insulation Voltage (V): | 1000 | Description | 3KF LV HRC (General Fuse), Rated Current 160A, Basic Unit — Side Operation Mechanism, No Handle, Operation Mechanism Module Located on the Right Side of the Switch, Surface Mounting |
| Mounting Type: | Surface Mounting | Fuse Specification: | Size: 00/000 |
| Terminal Type: | Flat Terminal | Number of Poles: | 4P |
| In(A): | 160 | Specification: | 3KF2_160 |
| Switch Type: | Basic Unit, Side Operation Mechanism, No Handle, Operation Mechanism Module Located on the Right Side of the Switch | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KF2416-4RF11 |
Specifications may be subject to change without notice
