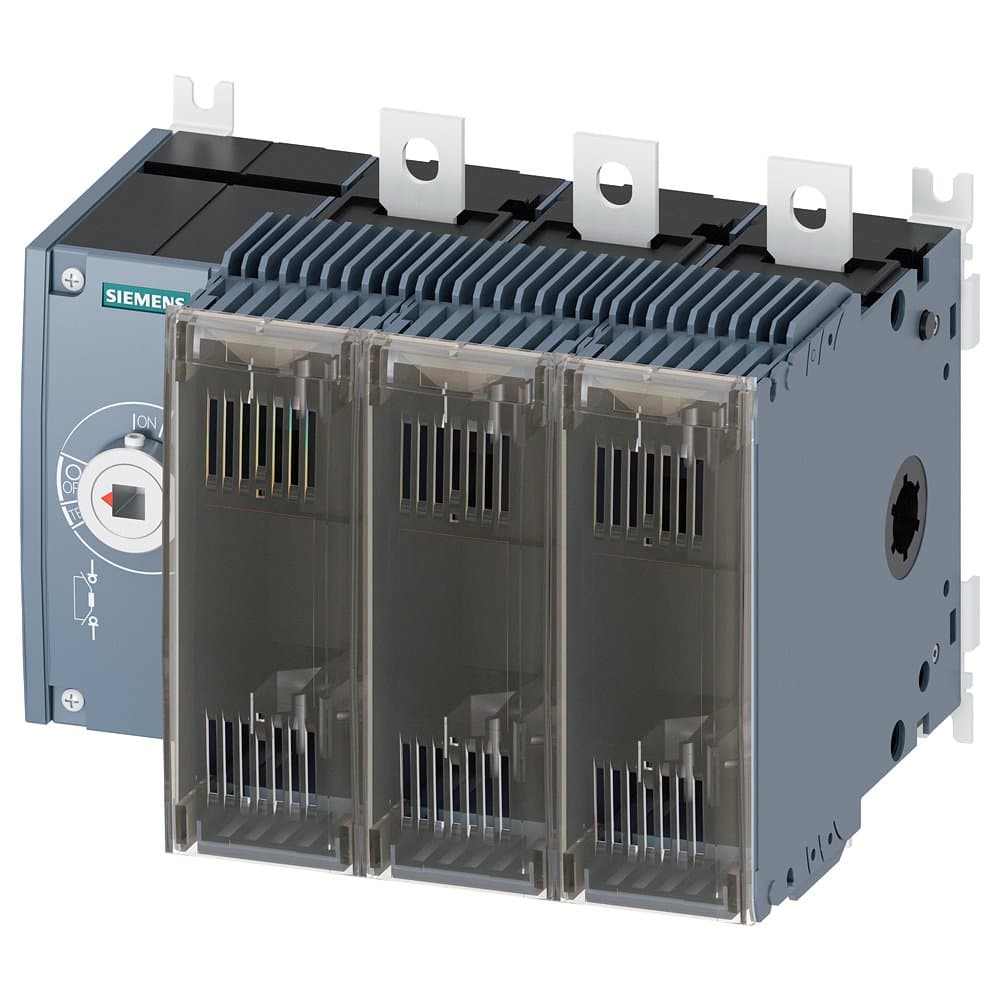

3KF3325-4LF11
Product ID:123920
Updated: 2026/4/5
Key Features
- 1Handle up to 250A for reliable power distribution. 2、Mount flexibly with side operation for space-saving integration. 3、Enhance safety with integrated fuse protection against overloads. 4、Simplify installation using the compact, left-side drive design. 5、Access comprehensive accessories for easy maintenance and setup.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V): | 220VDC/440VDC | AC Rated Voltage (V): | 690 |
| Insulation Voltage (V): | 1000 | Description | 3KF LV HRC (general fuse), rated current 250A, basic unit — side operation mechanism, no handle, operation mechanism module located on the left side of the switch, surface mount |
| Mounting Type: | Surface mount | Fuse Specification: | Size: 1 |
| Terminal Type: | Flat terminal | Number of Poles: | 3P |
| In(A): | 250 | Specification: | 3KF3_250 |
| Switch Type: | Basic unit, side operation mechanism, no handle, operation mechanism module located on the left side of the switch | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KF3325-4LF11 |
Specifications may be subject to change without notice
