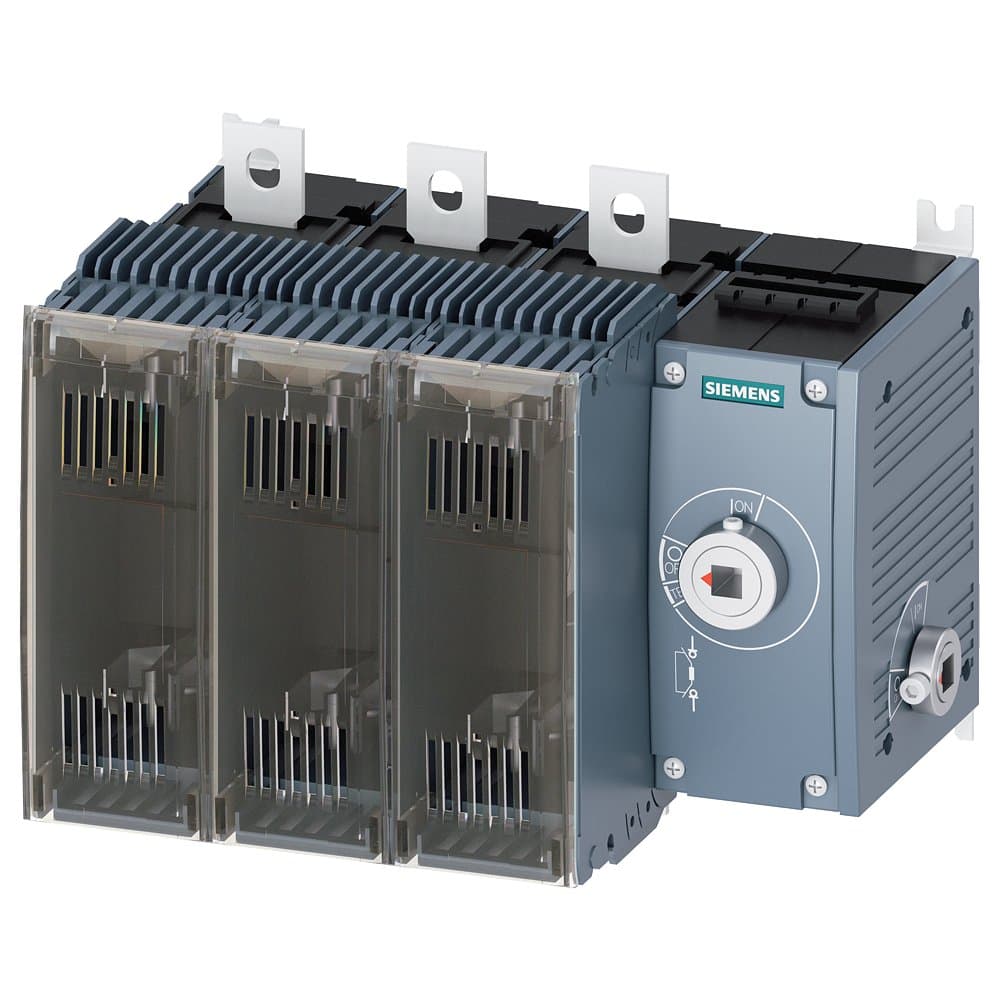

3KF3325-4RF11
Product ID:180769
Updated: 2026/7/3
Key Features
- 1Handle high currents reliably with a 250A rating.
- 2Operate conveniently using the side-mounted mechanism.
- 3Distribute power efficiently in a 3-pole configuration.
- 4Save valuable panel space with a compact design.
- 5Expand functionality with comprehensive accessory compatibility.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V): | 220VDC/440VDC | AC Rated Voltage (V): | 690 |
| Insulation Voltage (V): | 1000 | Description | 3KF LV HRC (general fuse), rated current 250A, basic unit — side operation mechanism, no handle, operation mechanism module located on the right side of the switch, surface mount |
| Mounting Type: | Surface mount | Fuse Specification: | Size: 1 |
| Terminal Type: | Flat terminal | Number of Poles: | 3P |
| In(A): | 250 | Specification: | 3KF3_250 |
| Switch Type: | Basic unit, side operation mechanism, no handle, operation mechanism module located on the right side of the switch | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KF3325-4RF11 |
Specifications may be subject to change without notice
