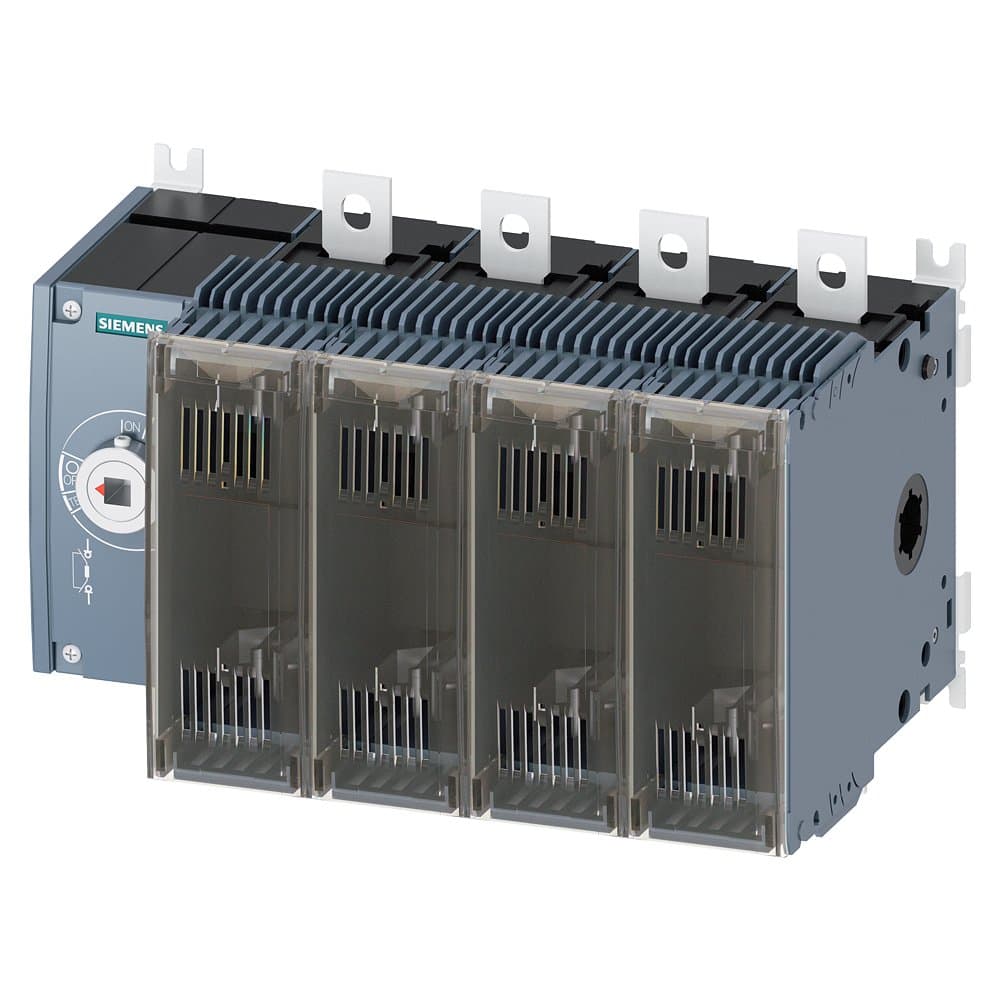

3KF3425-0LF11
Product ID:137798
Updated: 2026/4/6
Key Features
- 1Handle up to 250A for robust electrical distribution. 2、Integrate NH fuses for enhanced operational safety. 3、Utilize a compact 4-pole design for space efficiency. 4、Ensure reliable performance with Siemens engineering. 5、Simplify installation with blade connection terminals.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V): | 220VDC/440VDC | AC Rated Voltage (V): | 690 |
| Insulation Voltage (V): | 1000 | Description | 3KF LV HRC (General Fuse), Rated Current 250A, Basic Unit — Front Operation Mechanism, No Handle, Operation Mechanism Module on the Left Side of the Switch, Surface Mounting |
| Mounting Type: | Surface Mounting | Fuse Specification: | Size: 1 |
| Terminal Type: | Flat Terminal | Number of Poles: | 4P |
| In(A): | 250 | Specification: | 3KF3_250 |
| Switch Type: | Basic Unit, Front Operation Mechanism, No Handle, Operation Mechanism Module on the Left Side of the Switch | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KF3425-0LF11 |
Specifications may be subject to change without notice
