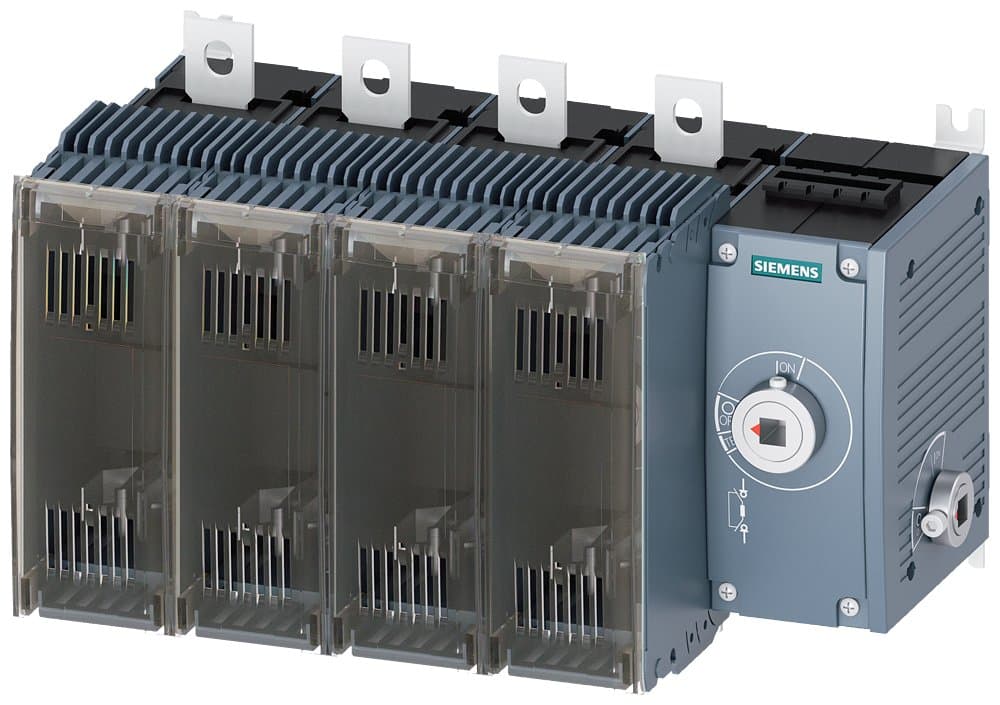

3KF3425-4RF11
Product ID:194279
Updated: 2026/7/3
Key Features
- 1Handle 250 A currents reliably for high-power applications.
- 2Maximize panel space with a compact and efficient design.
- 3Operate easily from the side for convenient access and installation.
- 4Control circuits comprehensively with a four-pole configuration.
- 5Integrate seamlessly using standard LV HRC fuse links size 0 and 1.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V): | 220VDC/440VDC | AC Rated Voltage (V): | 690 |
| Insulation Voltage (V): | 1000 | Description | 3KF LV HRC (General Fuse), rated current 250A, basic unit — side operation mechanism, no handle, operation mechanism module located on the right side of the switch, surface mount |
| Mounting Type: | Surface mount | Fuse Specification: | Size: 1 |
| Terminal Type: | Flat terminal | Number of Poles: | 4P |
| In(A): | 250 | Specification: | 3KF3_250 |
| Switch Type: | Basic unit, side operation mechanism, no handle, operation mechanism module located on the right side of the switch | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KF3425-4RF11 |
Specifications may be subject to change without notice
