3KF5363-2LF11
Product ID:109473
Updated: 2026/7/2
Key Features
- 1Handle up to 630A for reliable power distribution.
- 2Operate conveniently from the front for easy access.
- 3Use with LV HRC fuse sizes 2 and 3.
- 4Install in space-limited areas with its compact design.
- 5Withstand high operational and short-circuit currents.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC | AC Rated Voltage (V) | 690 |

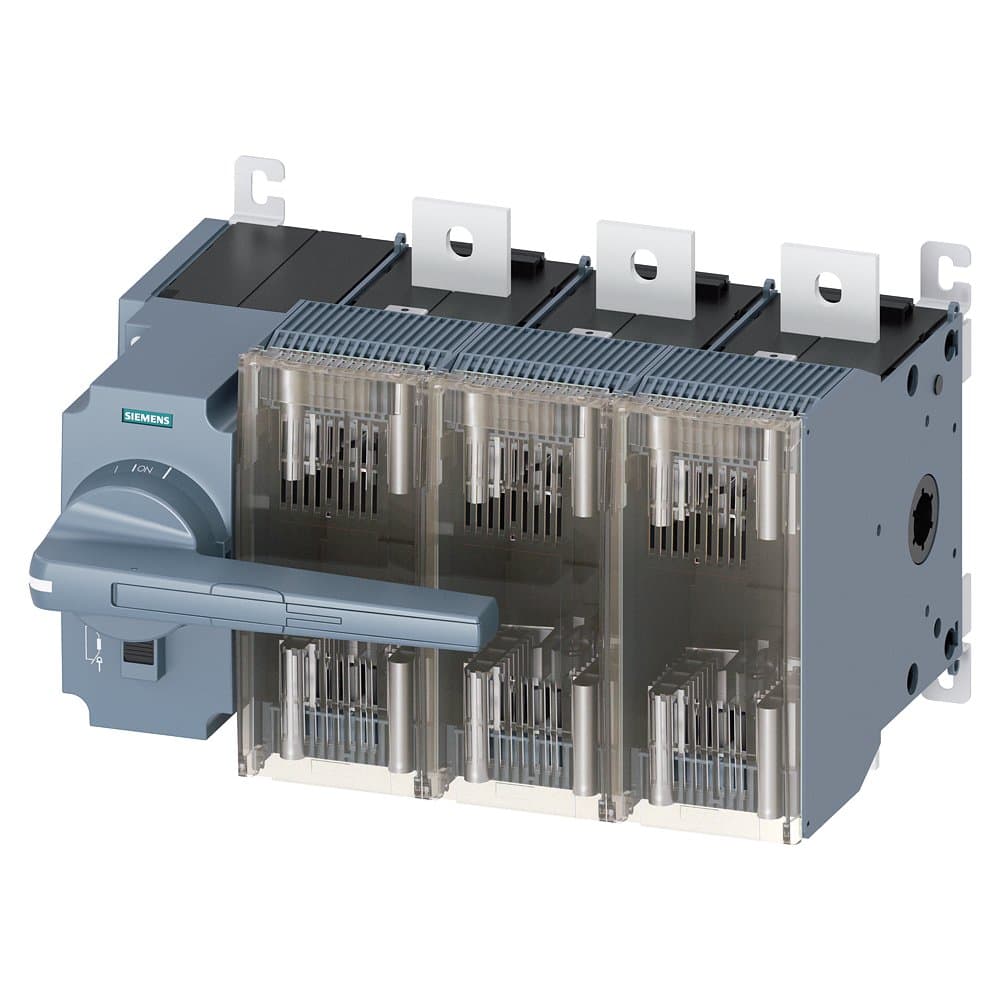

| Insulation Voltage (V) | 1000 | Description | 3KF LV HRC (General Fuse), rated current 630A, complete set type, front operation, with direct operating mechanism gray handle, surface mount |
| Mounting Type | Surface mount | Fuse Specification | Size: 2/3 |
| Terminal Type | Flat terminal | Number of Poles | 3P |
| In(A) | 630 | Specification | 3KF5_630 |
| Switch Type | Complete set type, front operation, with direct operating mechanism gray handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KF5363-2LF11 |
Specifications may be subject to change without notice
