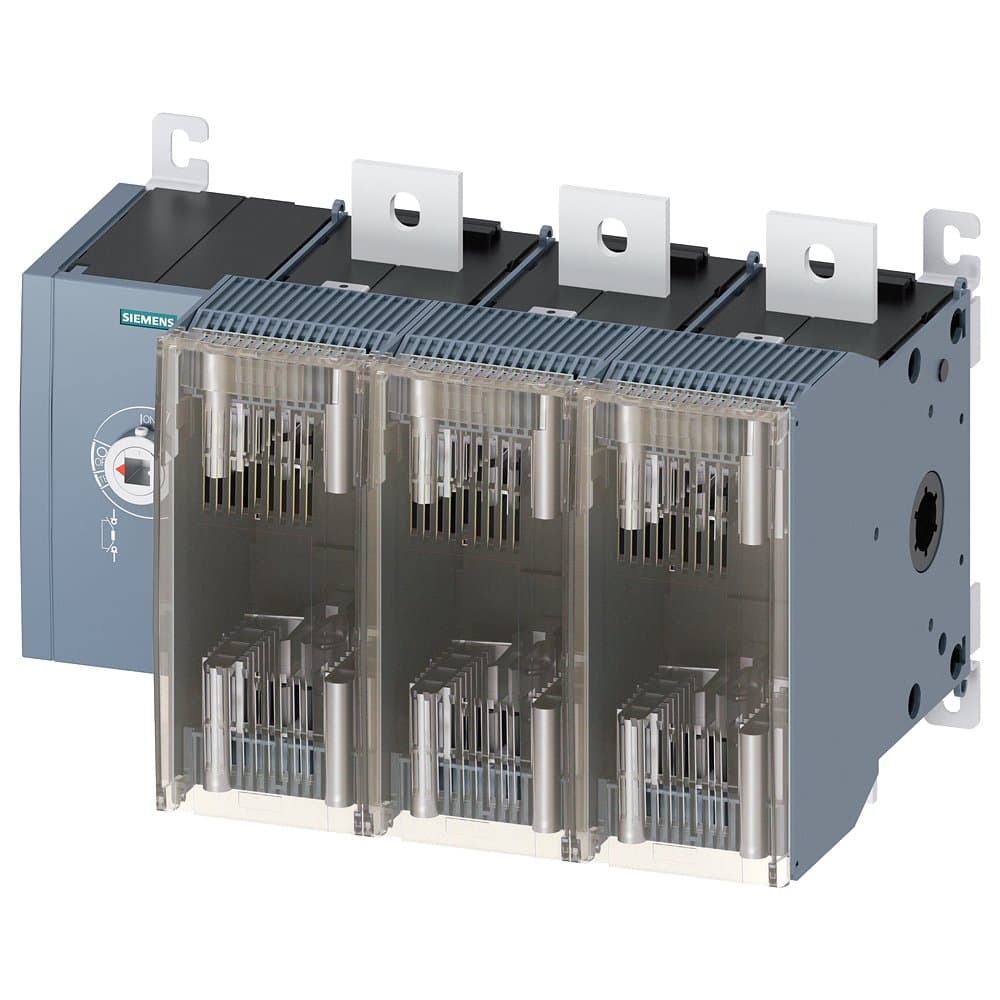

3KF5363-4LF11
Product ID:176335
Updated: 2026/8/21
Key Features
- 1Support up to 630A for reliable high-current applications.
- 2Fit space-limited installations with a compact side-mounted design.
- 3Operate easily with the side mechanism for user convenience.
- 4Integrate seamlessly with LV HRC fuse links.
- 5Ensure long-lasting performance with high-quality materials.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V): | 220VDC/440VDC | AC Rated Voltage (V): | 690 |
| Insulation Voltage (V): | 1000 | Description | 3KF LV HRC (General Fuse), Rated Current 630A, Basic Unit — Side Operation Mechanism, No Handle, Operation Mechanism Module Located on the Left Side of the Switch, Surface Mounting |
| Mounting Type: | Surface Mounting | Fuse Specification: | Size:2/3 |
| Terminal Type: | Flat Terminal | Poles: | 3P |
| In(A): | 630 | Specification: | 3KF5_630 |
| Switch Type: | Basic Unit, Side Operation Mechanism, No Handle, Operation Mechanism Module Located on the Left Side of the Switch | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KF5363-4LF11 |
Specifications may be subject to change without notice
