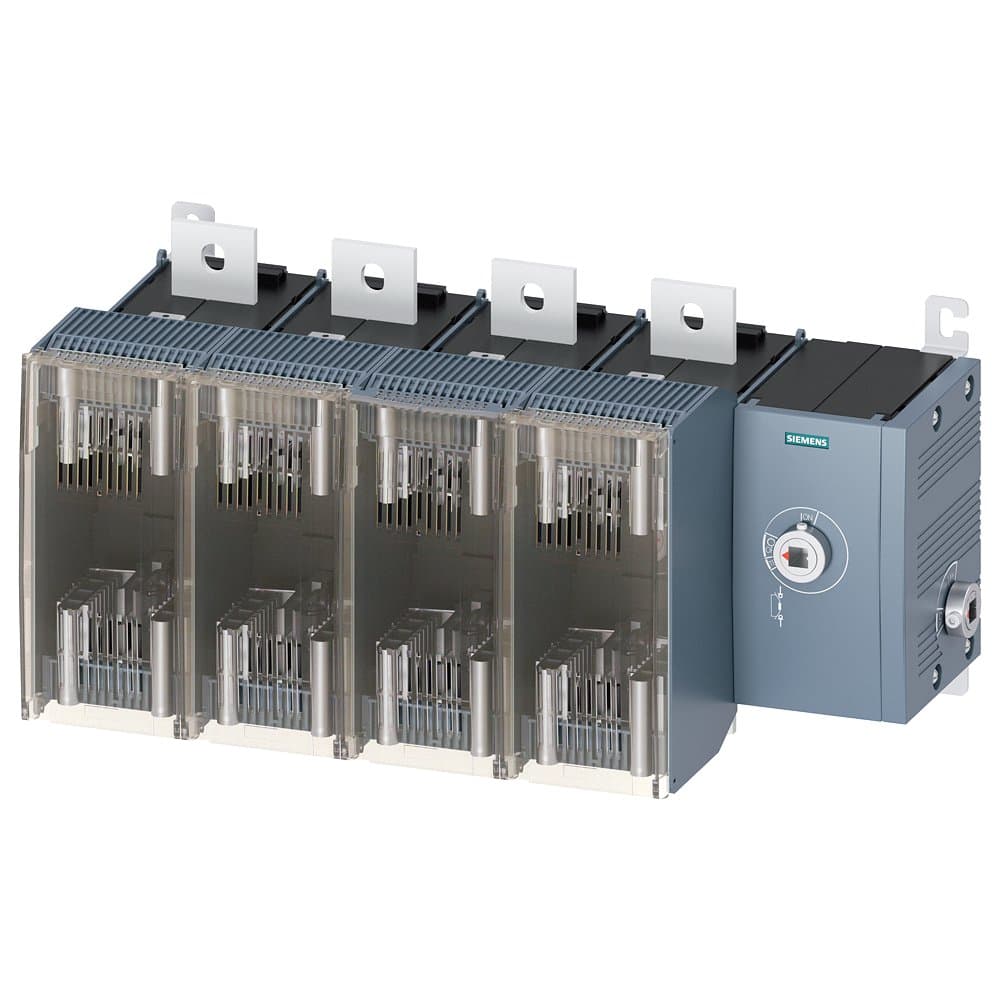

3KF5463-4RF11
Product ID:107585
Updated: 2026/7/2
Key Features
- 1Optimize panel space with a compact and efficient design.
- 2Ensure reliable protection using LV HRC and BS fuse links.
- 3Enhance system functionality with a robust 4-pole version.
- 4Simplify installation via versatile floor and board mounting options.
- 5Integrate advanced monitoring with current transformers and electronic systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KF LV HRC (General Fuse), rated current 630A, basic unit — side operation mechanism, no handle, operation mechanism module located on the right side of the switch, surface mounting |
| Mounting Type | Surface Mounting | Fuse Specification | Size: 2/3 |
| Terminal Type | Flat Terminal | Number of Poles | 4P |
| In(A) | 630 | Specification | 3KF5_630 |
| Switch Type | Basic unit, side operation mechanism, no handle, operation mechanism module located on the right side of the switch | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model | 3KF5463-4RF11 |
Specifications may be subject to change without notice
